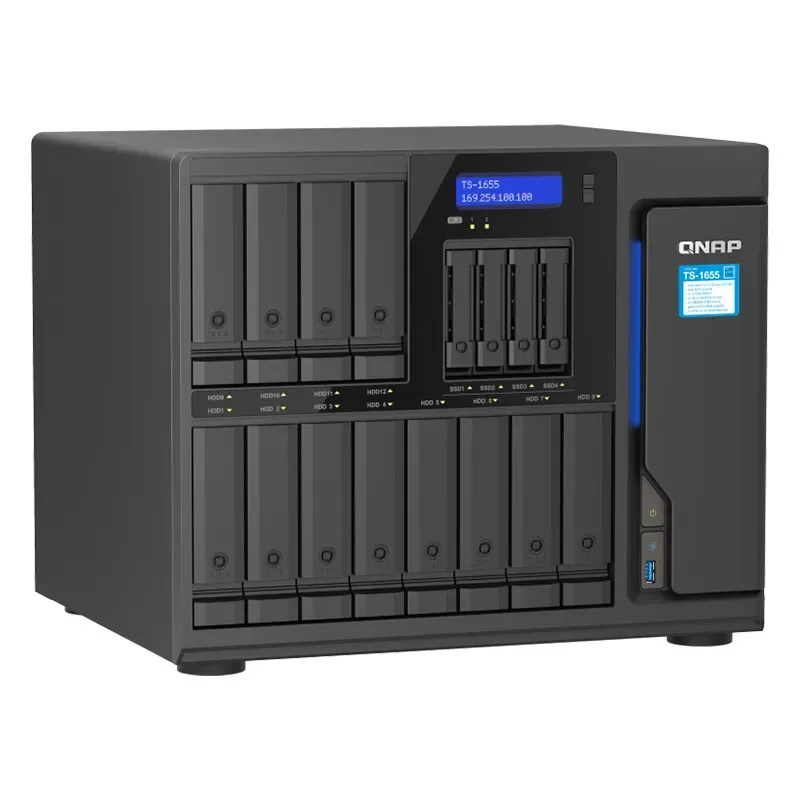

QNAP 16 Bay NAS TS-1655-8G And Get Bonus $100 Gift Card - TS-1655-8G-G1
$4,299.00 Original price was: $4,299.00.$4,000.62Current price is: $4,000.62. 'inc. GST'
QNAP 12-Bay Diskless NAS Ryzen 7 7000 8-Core 5.3GHz 32GB RAM - TS-H1277AXU-RP-R7-32G
$9,755.00 Original price was: $9,755.00.$9,643.00Current price is: $9,643.00. 'inc. GST'

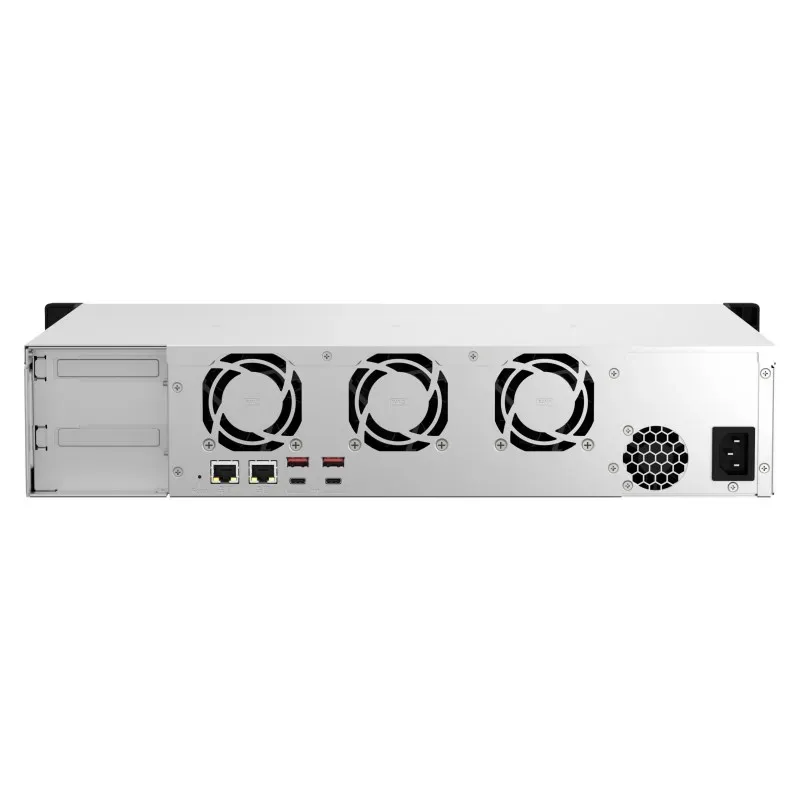

QNAP 8-Bay Diskless NAS Ryzen V1500B 4GB – TS-873AEU-4G
$2,869.00 Original price was: $2,869.00.$2,836.82Current price is: $2,836.82. 'inc. GST'
QNAP 8-Bay Diskless NAS Ryzen V1500B 4GB – TS-873AEU-4G features an AMD Ryzen Embedded V1500B quad-core processor, 4GB DDR4 RAM, dual 2.5GbE ports, M.2 SSD support, and a compact 2U rackmount design for business storage, 3year warranty.
In stock
Vendor Code:
SKU:
TS-873AEU-4G
Categories: Storage Devices, NAS - Network Storage, Rackmount NAS
Brand: QNAP
Supplier ID: DIC-TS-873AEU-4G
Description
Short Depth Rackmount dual-2.5GbE NAS. Powered by a Quad-core AMD Ryzen processor, supporting 10/25GbE or M.2 SSD caching PCIe expandability for virtual applications
The compact 2U rackmount TS-873AeU combines an AMD Ryzen V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD caching or Edge TPU empowered AI image recognition.
Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or multi-user intensive access. The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling.
Key Features:
- Dual-2.5GbE connectivity – Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking
- PCIe expandability – Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel
- Optimized SSD performance – Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier and SSD caching technology
- Hybrid cloud storage – Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data
- Virtual machine applications – Host multiple virtual machines and containers to run a wide range of applications
Specifications:
| CPU | AMD Ryzenâ„¢ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | ✓ |
| Encryption Engine | ✓ (AES-NI) |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Memory Support | Support ECC memory |
| Memory Configuration Note | For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Bay Note | The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch SATA hard disk drives |
| Drive Compatibility | 2.5-inch SATA solid state drives |
| Hot-swappable | ✓ |
| M.2 Slot | 2 x M.2 2280 (PCIe Gen3 x1) |
| SSD Cache Acceleration Support | ✓ |
| GPU Pass-through | ✓ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| Wake on LAN (WOL) | Only the 2.5GbE port |
| Jumbo Frame | ✓ |
| PCIe Slot | 1 x PCIe Gen3 x8 |
| PCIe Card Dimensions | 210 x 68.9 x 18.76 mm / 8.27 x 2.71 x 0.74 inches |
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type-A, 2 x Type-C) |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (H × W × D) | 89 × 482 × 297.4 mm |
| Dimensions Note | Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 7.61 kg |
| Weight (Gross) | 10.2 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | 250W PSU, 100 – 240V |
| Power Consumption: HDD Sleep Mode | 26.76 W |
| Power Consumption: Operating Mode, Typical | 52.49 W |
| Power Consumption Note | Tested fully populated with WD10EFRX hard drives. |
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2000 |
Additional information
| Brand | QNAP |
|---|---|
| Hard Drive Type | 8-Bay NAS |
| Memory Type | DDR4 |
| RAM | 4 GB |
| Form Factor | 2U Short Depth Rackmount |
| Warranty | 3 Years |
