Name: QNAP 8-Bay Diskless NAS Ryzen V1500B 4GB - TS-873AEU-RP-4G | Fast IT Solutions Australia
Brand: QNAP
SKU: TS-873AEU-RP-4G
Price: 4213.66 AUD
Availability: InStock

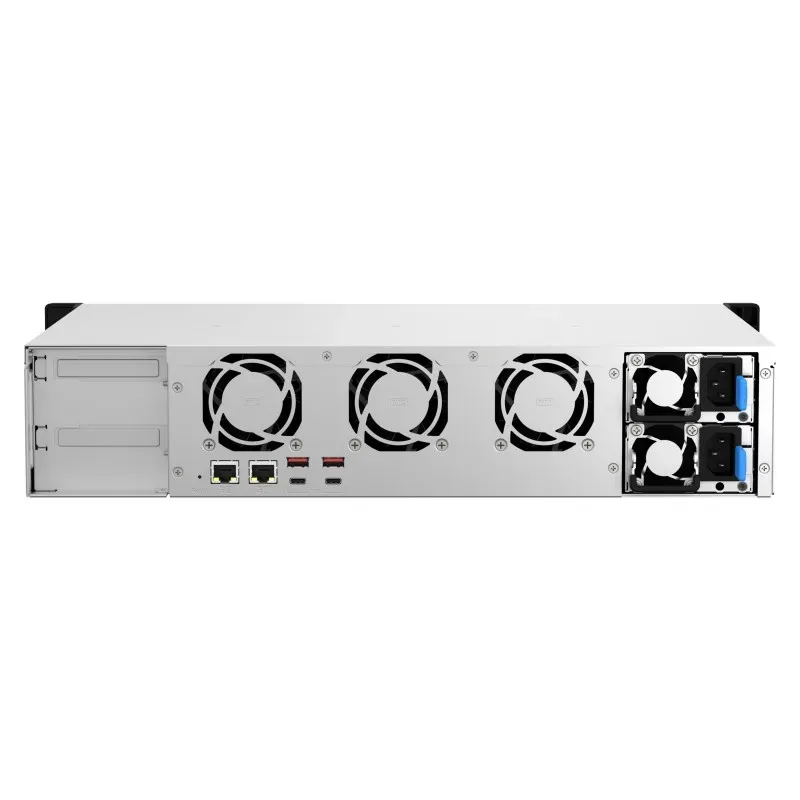

QNAP 8-Bay Diskless NAS Ryzen V1500B 4GB – TS-873AEU-RP-4G

'inc. GST'

QNAP 8-Bay Diskless NAS Ryzen V1500B 4GB – TS-873AEU-RP-4G features an AMD Ryzen Embedded V1500B processor, 4GB DDR4 ECC memory, dual 2.5GbE ports, dual redundant power supplies, and diskless storage for reliable business data management, 3year warranty.

In stock

Vendor Code:

SKU: TS-873AEU-RP-4G Categories: Storage Devices, NAS - Network Storage, Rackmount NAS Brand: QNAP

Supplier ID: LEA-TS-873AEU-RP-4G

Key Features:

Dual-2.5GbE connectivity – Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking
PCIe expandability – Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel
Optimized SSD performance – Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier and SSD caching technology
Hybrid cloud storage – Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data
Virtual machine applications – Host multiple virtual machines and containers to run a wide range of applications

Short Depth Rackmount dual-2.5GbE NAS. Powered By A Quad-Core AMD Ryzen Processor, Supporting 10/25GbE or M.2 SSD Caching PCIe Expandability For Virtual Applications

The compact 2U rackmount TS-873AeU-RP combines an AMD Ryzen V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU-RP is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD cache acceleration or Edge TPU empowered AI image recognition.

Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU-RP the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or intensive multi-user access. The space-efficient short depth design of only 11.7 inches (297.4 mm) makes it easy to install in small media cabinets or places with a lot of cabling. The TS-873AeU-RP also features two redundant power supplies to ensure maximum system uptime.

Specifications:

CPU	AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture	64-bit x86
Floating Point Unit	✓
Encryption Engine	✓ (AES-NI)
System Memory	4 GB SODIMM DDR4 (1 × 4 GB)
Maximum Memory	64 GB (2 × 32 GB)
Memory Slot	2 × SODIMM DDR4
Memory Support	Support ECC memory
Memory Configuration Note	For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	8 × 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Bay Note	The system is shipped without HDD.
Drive Compatibility	3.5-inch SATA hard disk drives
Drive Compatibility	2.5-inch SATA solid state drives
Hot-swappable	✓
M.2 Slot	2 × M.2 2280 (PCIe Gen3 ×1)
SSD Cache Acceleration Support	✓
GPU Pass-through	✓
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
Wake on LAN (WOL)	✓
Wake on LAN Note	Only the 2.5GbE port
Jumbo Frame	✓
PCIe Slot	1 × PCIe Gen3 ×8
PCIe Card Dimensions	210 × 68.9 × 18.76 mm / 8.27 × 2.71 × 0.74 inches
USB 3.2 Gen 2 (10Gbps) Port	4 (2 × Type-A, 2 × Type-C)
Form Factor	2U Short Depth Rackmount
LED Indicators	HDD 1-8, Status, LAN, USB, Power
Buttons	Power, Reset
Dimensions (H × W × D)	89 × 482 × 297.4 mm
Dimensions Note	Excludes ear hook and the protruding part of the Power Supply Unit
Weight (Net)	8.15 kg
Weight (Gross)	10.92 kg
Operating Temperature	0 – 40 °C (32°F – 104°F)
Storage Temperature	-20 – 70°C (-4°F – 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	300W PSU (×2), 100 – 240V
Power Consumption: HDD Sleep Mode	32.19 W
Power Consumption: Operating Mode, Typical	58.14 W
Power Consumption Note	Tested fully populated with WD10EFRX hard drives.
Fan	3 × 60mm, 12VDC
System Warning	Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory	2000
