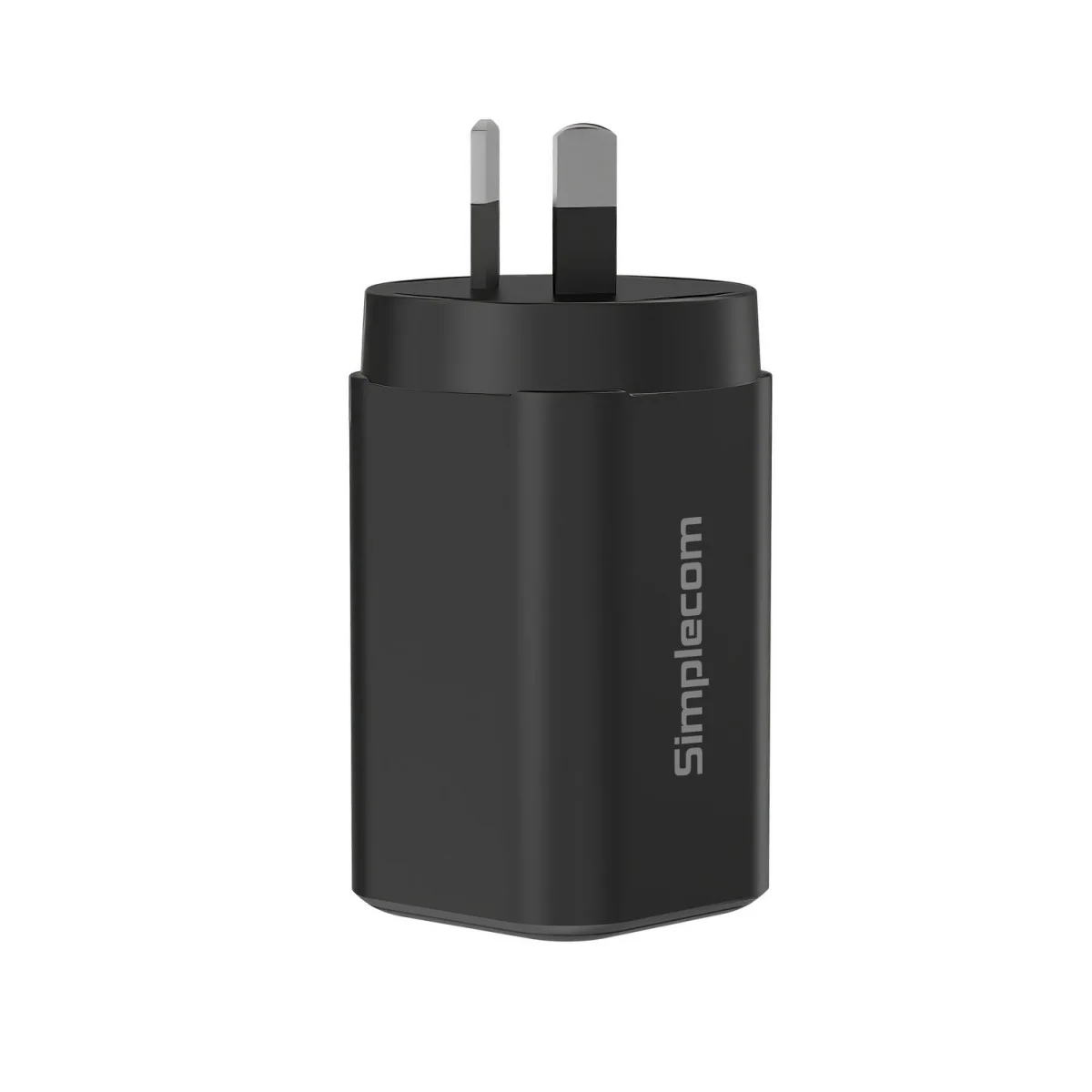

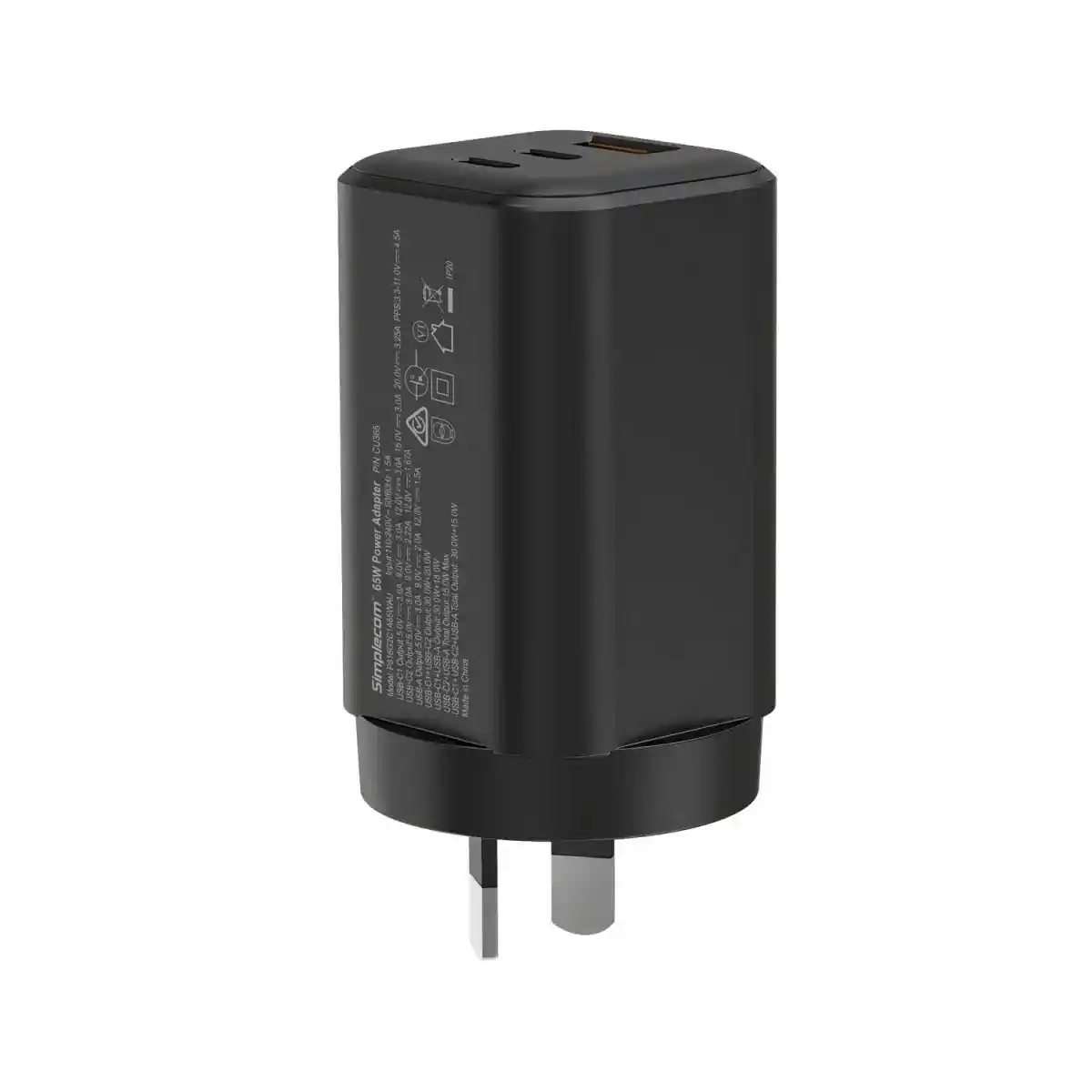

Simplecom CU365 3-Port PD 65W GaN Wall Charger Dual USB-C + USB-A for Phone Laptop

Simplecom CU365 3-Port PD 65W GaN Wall Charger Dual USB-C + USB-A for Phone Laptop

Charge smarter, faster, and lighter with this 3-Port 65W GaN PD Charger. Powered by the latest GaN (gallium nitride) technology, it delivers more efficiency with smaller, lighter components and reduced heat for superior performance compared to traditional chargers.

This 65W Power Delivery (PD) charger features two USB-C ports and one USB-A port. It is capable of delivering up to 65W of fast PD charging when using the first USB-C port (USB-C1) alone. Intelligent power distribution technology ensures that all ports operate at optimized speeds when charging two or three devices simultaneously.

Compatible with a wide range of devices, Power Delivery (PD) technology enables charging of any device equipped with a USB-C charging port, including laptops, tablets, and mobile phones. This charger serves as a convenient all-in-one solution for travellers, suitable for charging various devices with a single unit.

Key Features

• Charge up to 3 devices at once with two USB-C ports and one USB-A port
• Delivers up to 65W of PD charging when using the first USB-C port (USB-C1) alone
• Intelligent power distribution for optimized speeds
• Advanced GaN technology for efficient charging at smaller size
• Lightweight and portable design, perfect for travel
• Wide compatibility with multiple fast-charging protocols
• Built-in protections against over-voltage, overheating, and short circuits

Specifications

Item Number: CU365
Model Number: P816G2C1A65WAU
Input: AC 110-240V, 50/60Hz 1.5A Max
Rated Power: 65 watts maximum
Material: PC Fireproof Plastic
Charing Protocols Support: PD3.0, QC3.0, PPS, Apple 2.4A
Single Port Output:
USB-C1 (65W Max): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A, 3.3V-11V/4.5A(PPS)
USB-C2 (20W Max): 5V/3A, 9V/2.22A, 12V/1.67A
USB-A (18W Max): 5V/3A, 9V/2A, 12V/1.5A
2-Port Output:
USB-C1 + USB-C2 (50W Max): 30W + 20W
USB-C1 + USB-A (48W Max): 30W + 18W
USB-C2 + USB-A (15W Max): 15W (USB-C2 and USB-A shared)
3-Port Output:
USB-C1 + USB-C2 + USB-A (45W Max): 30W (USB-C1) + 15W (USB-C2 and USB-A shared)
Dimension (with plug): 3.6cm x 3.6cm x 8.1cm (LxWxH)

Important Note:

PD charging protocol only can be supported by USB-C port.
A 100W (20V/5A) or higher USB-C PD charging cable is required to charge a laptop at 65W.
To charge a 65W laptop, please use the USB-C1 port and disconnect any devices connected to the USB-C2 and USB-A ports.
When charging two or three devices simultaneously, the USB-C1 port will be limited to a maximum of 30W.
