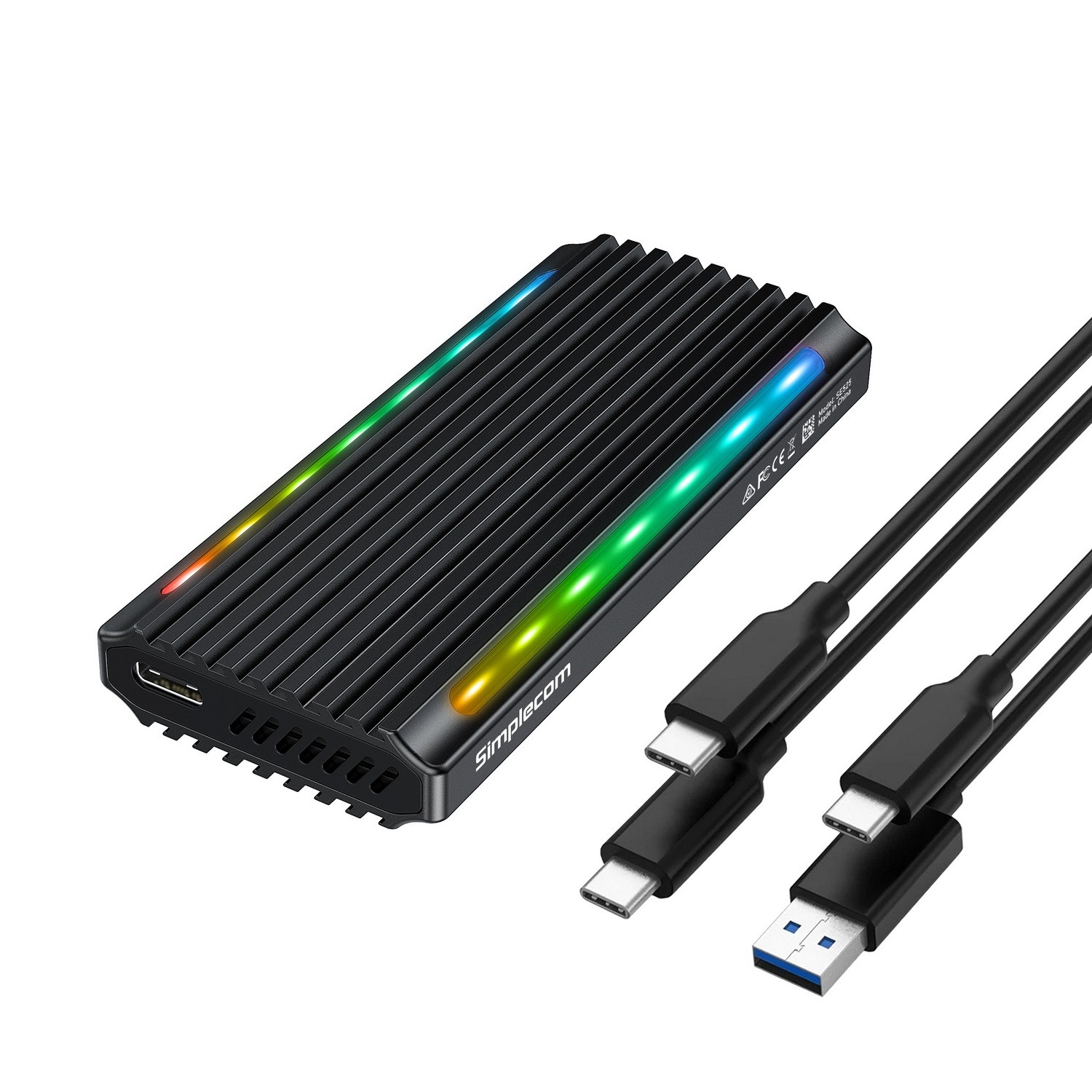

Simplecom SE525 NVMe / SATA M.2 SSD USB-C Enclosure

The Simplecom SE525 is a premium USB-C M.2 SSD enclosure designed to support both NVMe and SATA M.2 SSDs. Featuring USB 3.2 Gen 2 technology with transfer speeds up to 10Gbps, dynamic RGB lighting, tool-free installation, and an aluminium heatsink-style enclosure, it provides a fast and convenient way to turn your internal SSD into portable external storage. Compatible with M.2 2242, 2260, and 2280 SSDs.

Key Features

• Dual Protocol support for both NVMe and SATA M.2 SSD
• Convert M Key or B+M Key M.2 SSD to a USB portable drive
• USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps
• Aluminium case for durability and excellent heat dissipation
• Dynamic RGB light effect for power and activity status
• Tool-free design, quick and easy installation of SSDs without any tools
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no driver required

Specifications

Model: SE525
Interface: USB-C (USB 3.2 Gen 2)
Housing Material: Aluminium, ABS Plastic
Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
Compatible M.2 Protocol: NVMe M.2, SATA M.2
Compatible M.2 Size: 2242, 2260, 2280
Dimension: 98x44x13mm (LxWxH)
Operating System Support: Windows 7 and above, MacOS 10.8 and above

Package Contents

1x SE525 M.2 SSD Enclosure
1x USB C to USB C Cable
1x USB C to USB A Cable
1x Thermal Pad

Important Note

SE525 supports both NVMe and SATA protocol based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA protocol is 6Gbps.
RGB light effect is fixed and can’t be programmed, breathing effect when powered, and switch to flowing effect during data transfer.
