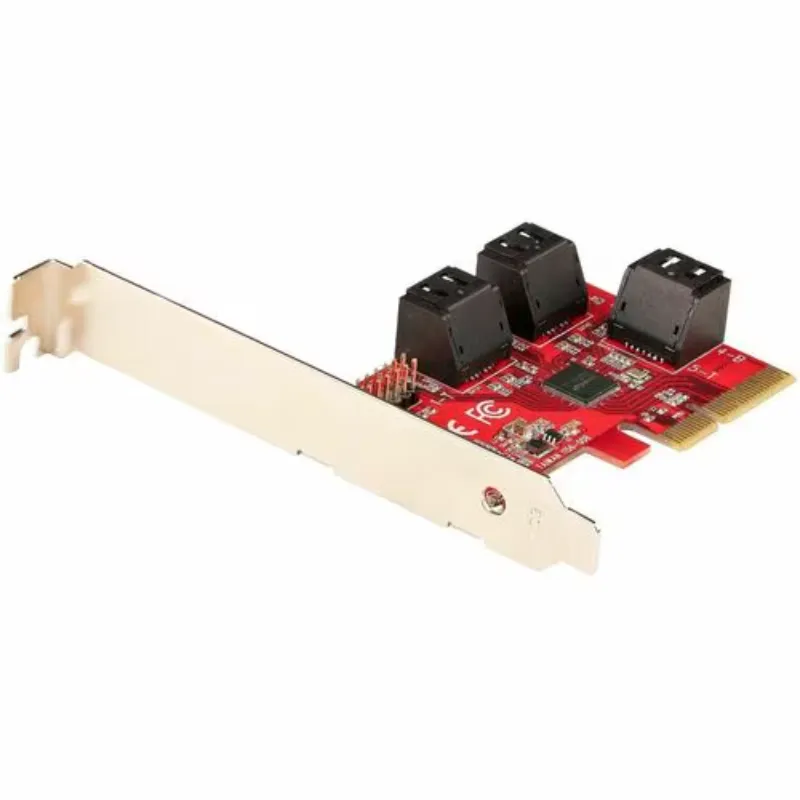

StarTech 6 Port PCIe SATA Expansion Card 6P6G-PCIE-SATA-CARD
Original price was: $168.29.$160.20Current price is: $160.20. 'inc. GST'

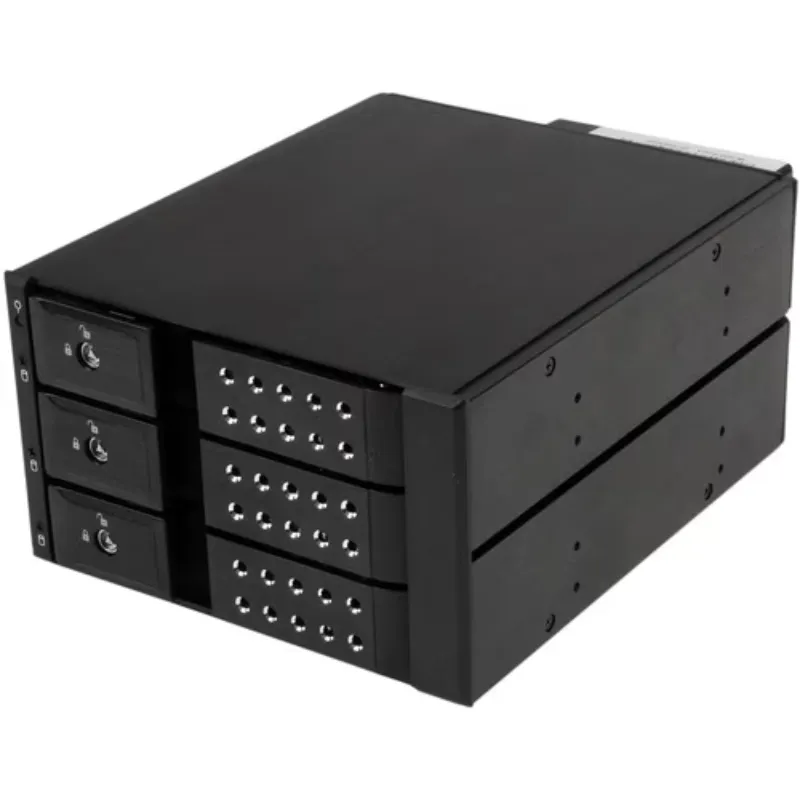

StarTech 5.25 inch SAS SATA Drive Enclosure HSB3SATSASBA
Original price was: $206.79.$181.35Current price is: $181.35. 'inc. GST'
StarTech 5.25 inch SAS SATA Drive Enclosure HSB3SATSASBA supports up to 3 hard drives with SATA/600 and SAS compatibility, offering hot-swappable internal storage expansion, efficient cooling, and reliable enterprise-grade data management.
In stock
Vendor Code:
Description

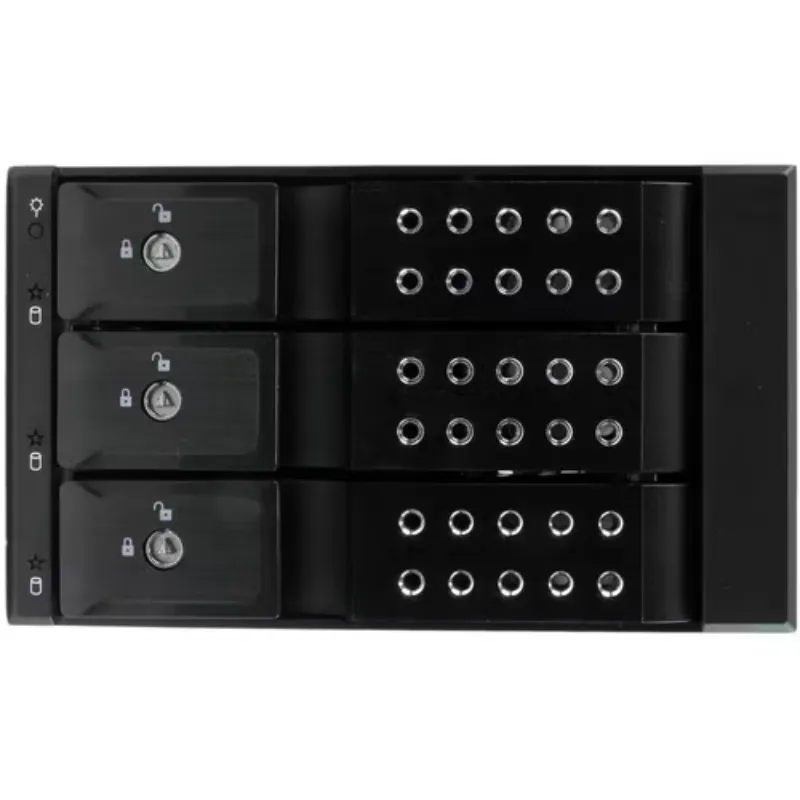

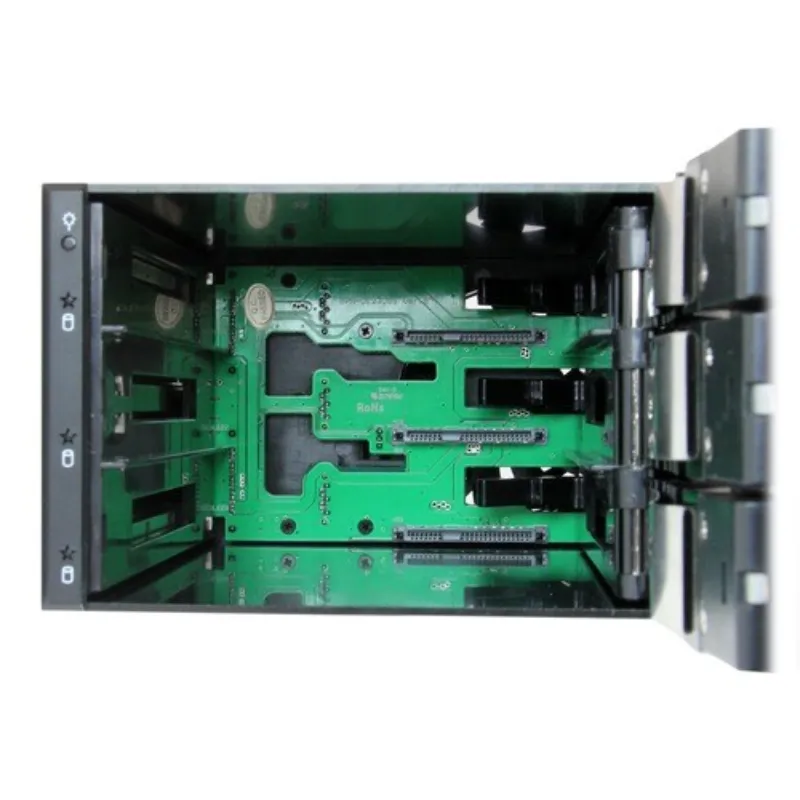

The StarTech 5.25 inch SAS SATA Drive Enclosure HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5″ drives from the front of your computer, by turning two 5.25″ bays into a hot-swappable interface for you to connect up to three 3.5″ SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives — an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays
Key Features:
- INCREASED PRODUCTIVITY: The 3-drive hot swap backplane lets you turn two 5.25in bays into a hot-swappable interface for you to connect up to three 3.5in SATA or SAS hard drives (HDD)
- MAXIMUM COMPATIBILITY: For added versatility, the hard mobile rack backplane can interface with SATA I/II/III and SAS I/II hard drives; An ideal accommodation for enterprise system applications; Power and status LEDs for each bay

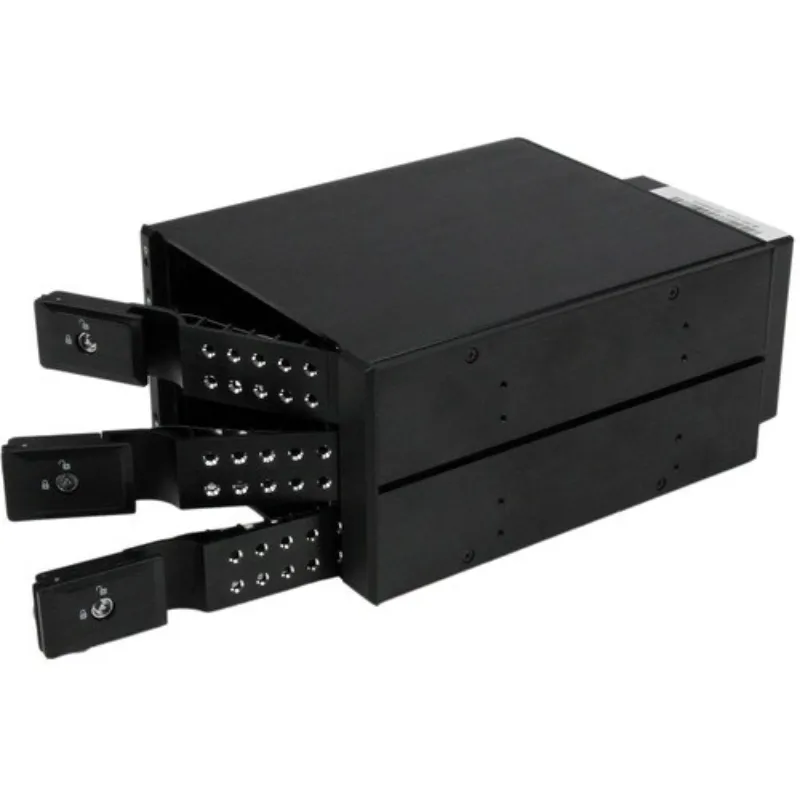

- QUICK SETUP: For a quick and secure method of installing and removing drives, this trayless SATA hot swap backplane features individual ejection levers for each bay with a key-lock design for optional added security (includes two keys)

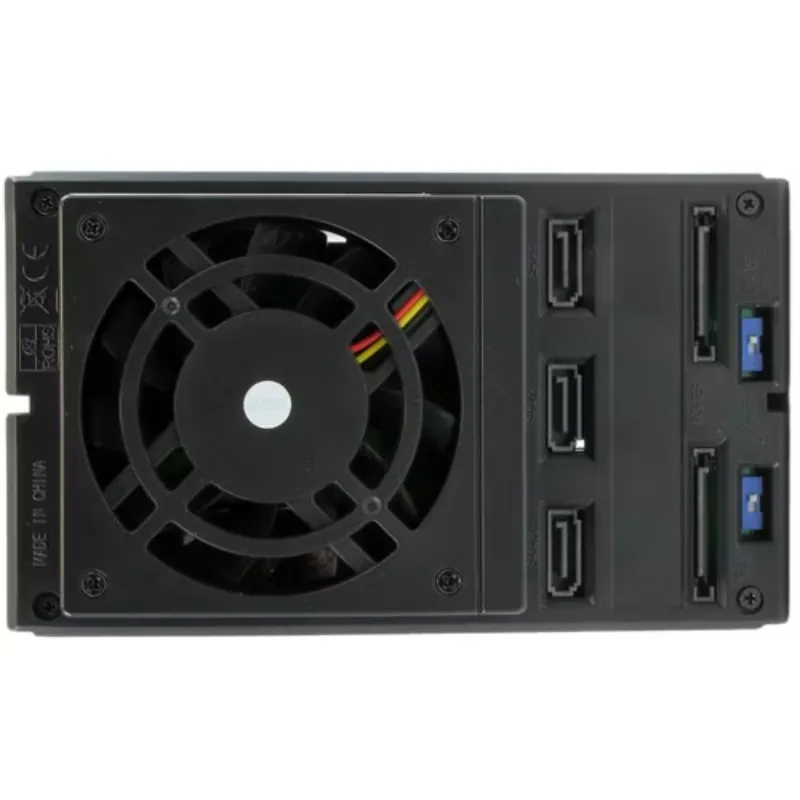

- MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the 3-drive hot swap backplane features a vented solid aluminum enclosure that provides excellent heat dissipation in addition to a built-in fan with speed control; UL VO flammability rated
- THE IT PRO’S CHOICE: Designed and built for IT professionals, this 3-Bay hard drive backplane is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Specifications:
NETWORK & COMMUNICATION |
|
| Wireless LAN | No |
I/O EXPANSIONS |
|
| Number of Total Expansion Bays | 3 |
| Number of 3.5″ Bays | 3 |
MISCELLANEOUS |
|
| Certifications & Standards | CE, FCC |
| Environmentally Friendly | Yes |
TECHNICAL INFORMATION |
|
| Number of Hard Drives Supported | 3 |
| Number of Hard Drives Installed | No |
INTERFACES/PORTS |
|
| Host Interface | Serial ATA/600 |
| Network (RJ-45) | No |
| Drive Interface | SATA/600, Serial Attached SCSI (SAS) |
GENERAL INFORMATION |
|
| Product Type | Drive Enclosure |
| Manufacturer Part Number | HSB3SATSASBA |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 3 SATA HDD Backplane |
| Brand Name | StarTech.com |
PHYSICAL CHARACTERISTICS |
|
| Weight (Approximate) | 1.22 kg |
| Form Factor | Internal |
| Height | 109.2 mm |
| Width | 144.8 mm |
| Depth | 193 mm |
| Compatible Drive Bay Width | 5.25″ |
| Cooling Fan | Yes |
| Product Color | Black |
| Color Family | Black |
| Product Material | Aluminium |
Additional information
| Brand | StarTech.com |
|---|---|
| Hard Drive Type | SAS SATA Drive Enclosure |
| Interface | Serial ATA/600 |
| Form Factor | Internal |
