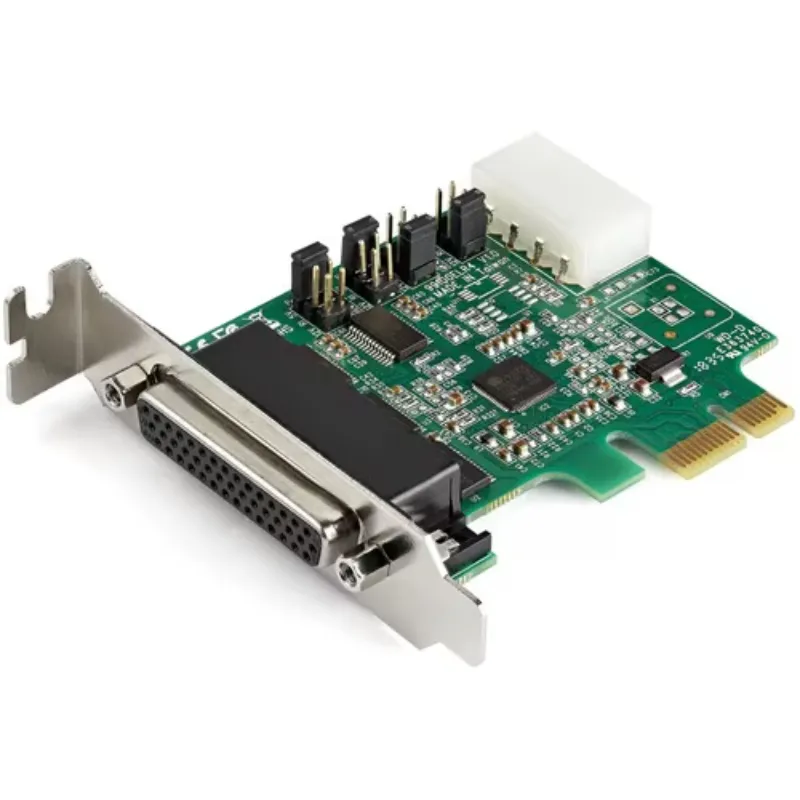

StarTech 4 Port Serial PCIe Adapter PEX4S953LP
Original price was: $256.29.$219.12Current price is: $219.12. 'inc. GST'

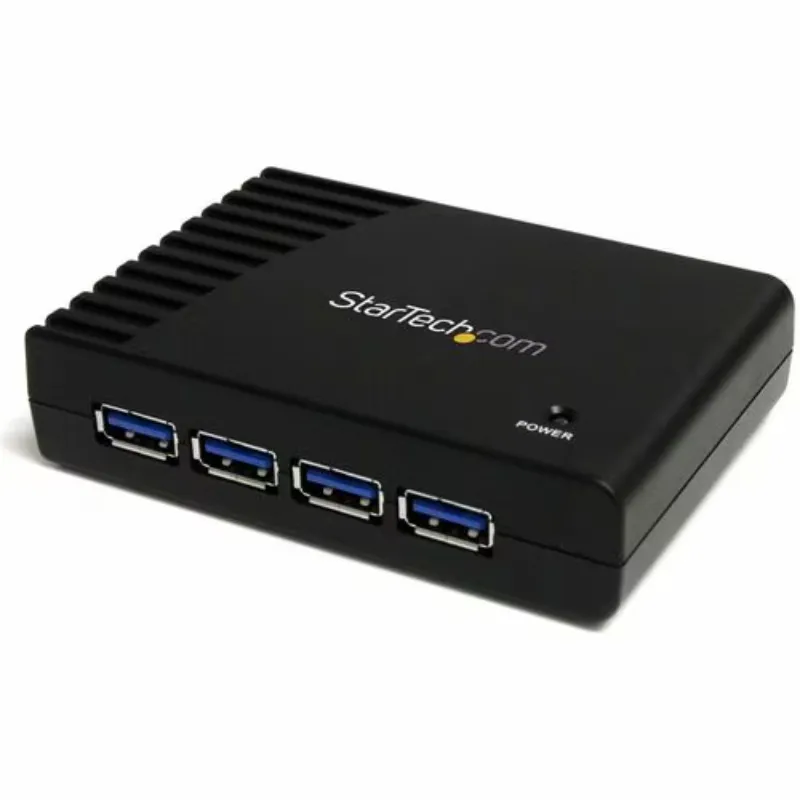

StarTech 4 Port USB 3.0 Hub ST4300USB3
Original price was: $112.19.$95.41Current price is: $95.41. 'inc. GST'
StarTech Serial PCIe Adapter PEX1S953LP
Original price was: $108.89.$99.54Current price is: $99.54. 'inc. GST'

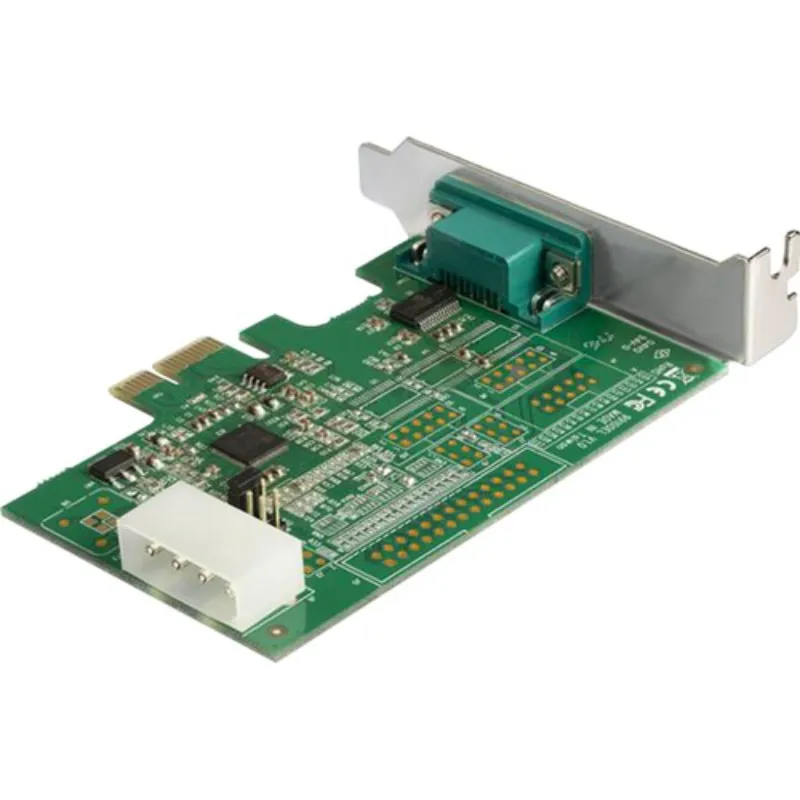

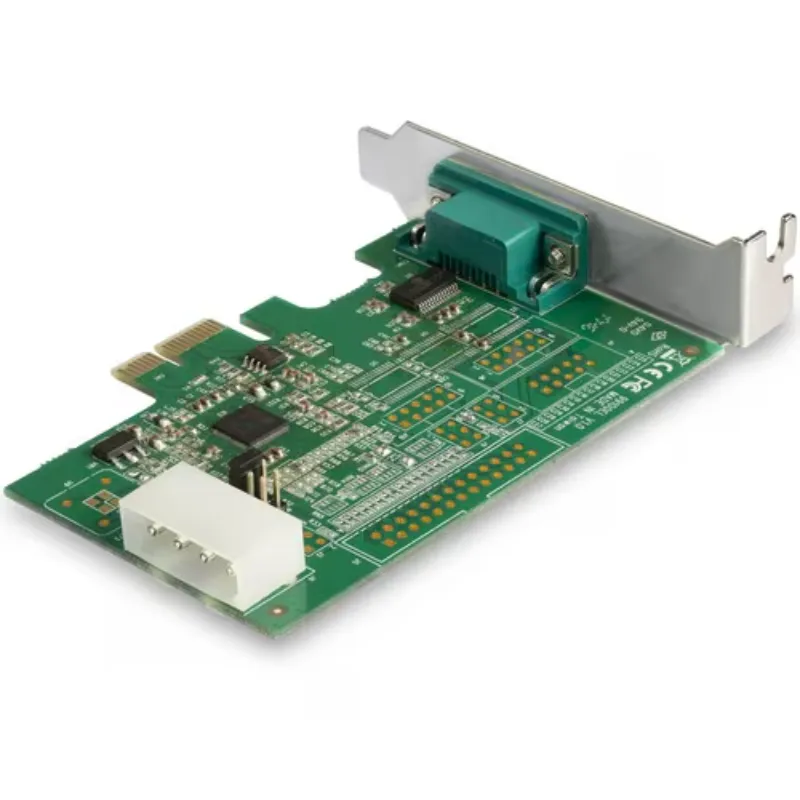

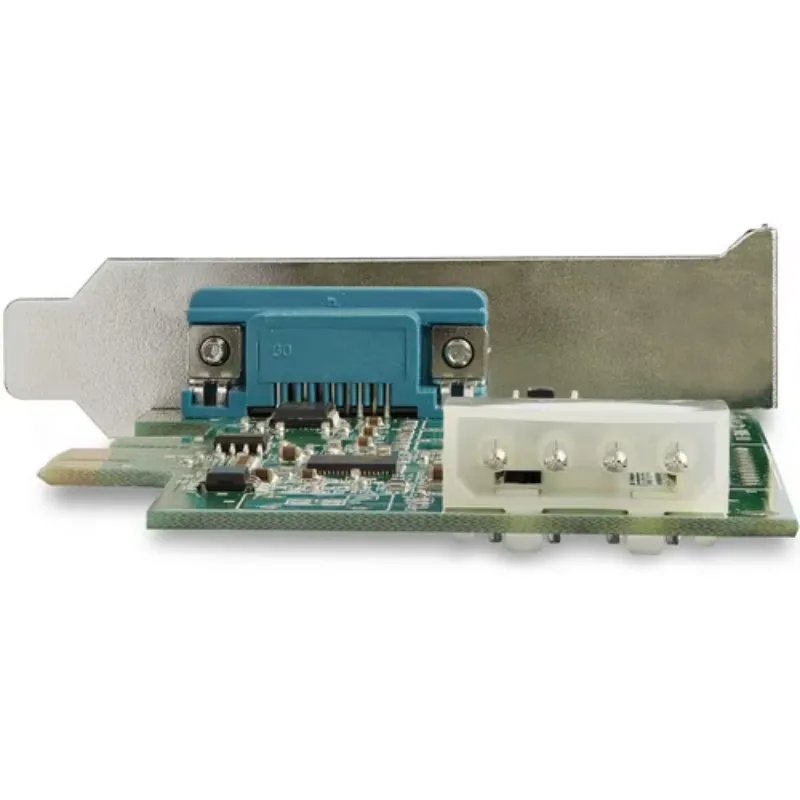

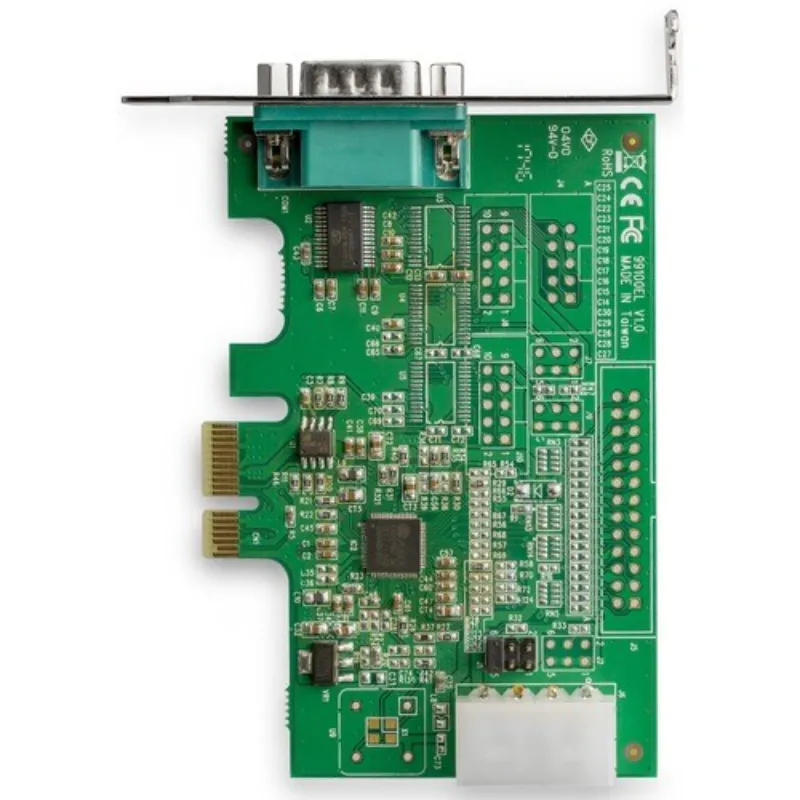

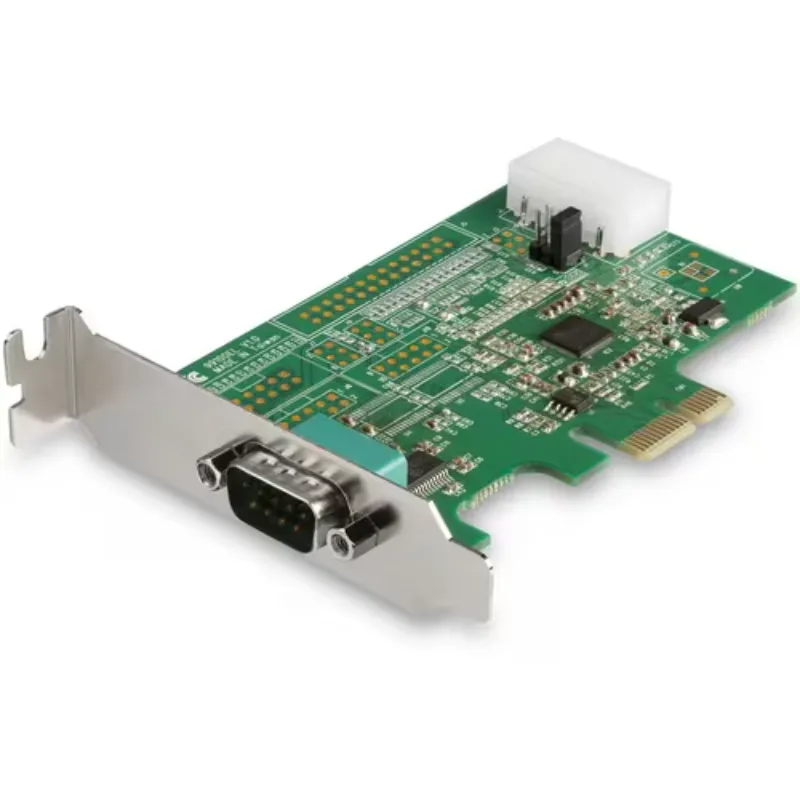

StarTech Serial PCIe Adapter PEX1S953LP with 16950 UART – Low-profile Plug-in Card – 1 – PCI Express x1 – PC, Linux – 1 x Number of Serial Ports External
In stock
Vendor Code:
Description

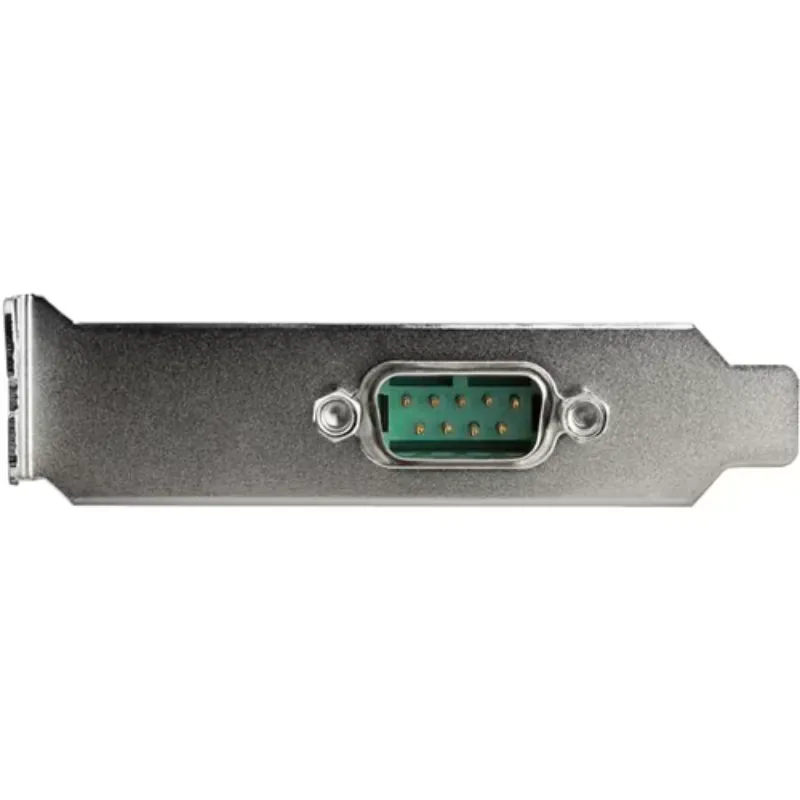

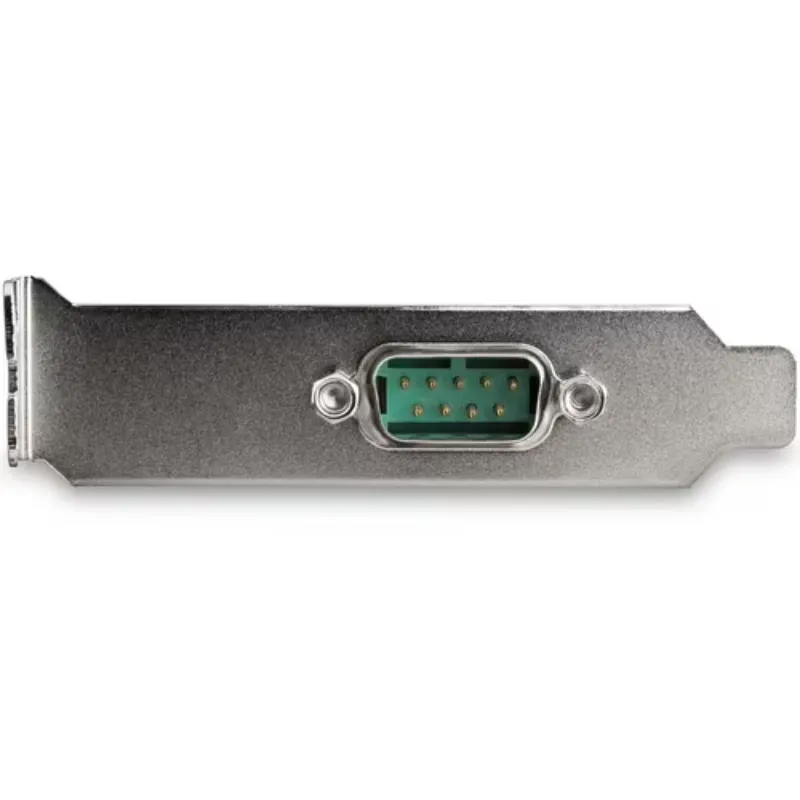

This StarTech Serial PCIe Adapter PEX1S953LP lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART Supports max baud rate of up-to 921.4Kbps Provides 5/12V power output on Pin 9 when external power is connected 128-byte depth FIFO per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits Asix AX99100 chipset PCI Express 1.1 compliant
Specifications:
INTERFACES/PORTS |
|
| Number of Serial Ports (External) | 1 |
TECHNICAL INFORMATION |
|
| Host Interface | PCI Express x1 |
| Platform Supported | PC, Linux |
| UART Type | 16950 |
PHYSICAL CHARACTERISTICS |
|
| Weight (Approximate) | 45.4 g |
| Form Factor | Plug-in Card |
| Length | 99.1 mm |
| Height | 149.9 mm |
| Width | 66 mm |
| Card Height | Low-profile |
GENERAL INFORMATION |
|
| Product Type | Serial Adapter |
| Manufacturer Part Number | PEX1S953LP |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 1-Port PCI Express Serial Card with 16950 UART – Low-Profile |
| Brand Name | StarTech.com |
Additional information
| Brand | StarTech.com |
|---|---|
| Networking Accessories | Serial Adapter |
| Interface | PCI Express x1 |
| Form Factor | Plug-in Card |
