StarTech USB 3.1 Adapter Cable For 2.5″ SATA Drives – USB31CSAT3CB

$57.19 'inc. GST'

The StarTech USB 3.1 Adapter Cable For 2.5″ SATA Drives – USB31CSAT3CB provides fast USB-C to SATA connectivity for 2.5-inch SSDs and HDDs. This compact StarTech USB-C SATA adapter supports 10Gbps data transfer, UASP, TRIM, S.M.A.R.T., and hot-swap functionality for efficient backup, cloning, and drive access, 2years warranty.

In stock

Vendor Code:
SKU: USB31CSAT3CB Categories: , , Brand:
Supplier ID: ING-USB31CSAT3CB
Description

Take advantage of the USB-C™ port on the latest MacBook, Chromebook Pixel™ or other laptop to get quick access to your external drive. This cable-style adapter lets you use the USB Type-C™ port to connect your laptop directly to a 2.5″ solid-state drive or hard drive, and access it through ultra-fast USB 10Gbps. It’s fast and easy to connect to your SATA drives, with no additional accessories required.

Ultra-portable With No External Power Required

You can quickly access your valuable data, wherever you go, using this cable-style adapter. It’s USB powered, so there’s no external adapter required, and features a compact, lightweight design that you can easily tuck into your laptop bag or carrying case.

Convenient Drive Access

The adapter cable lets you quickly swap HDDs or SSDs without having to install your drives into an enclosure. You can copy or retrieve data from a 2.5″ SSD or HDD quickly. It gives you easy access to your drive for data migration, drive cloning and data backup applications, with the fast performance of USB 10Gbps.

Connect Easily, With USB-C

The integrated, easy-to-use USB Type-C connector is small and reversible, which makes for easier insertions. You can connect the plug with either side facing up, which means less risk of damaging your ports, and less frustration.

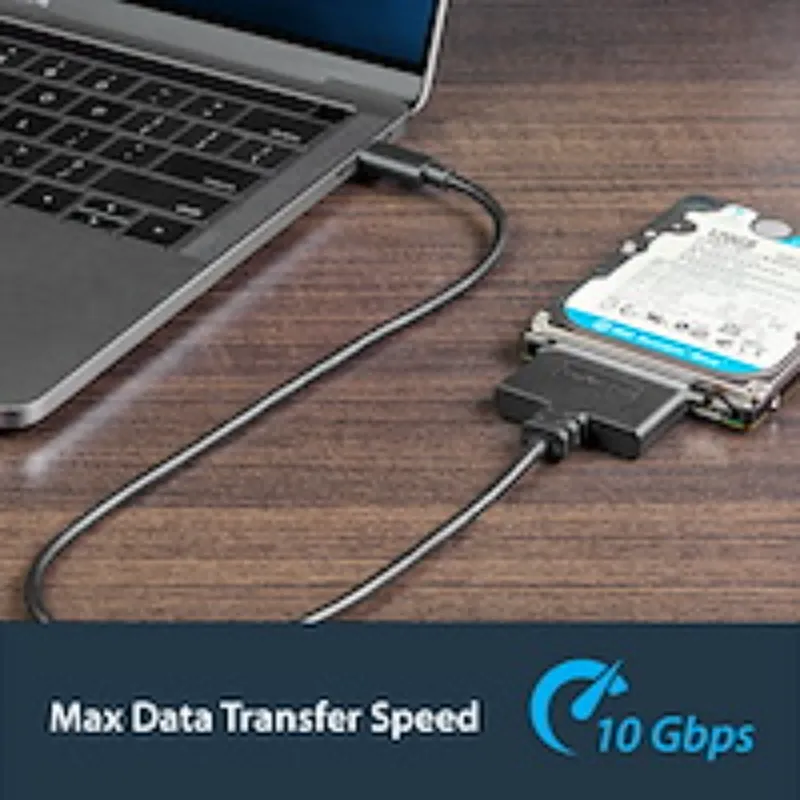

Harness The Speed Of USB 10Gbps

USB 10Gbps (also known as USB 3.2 Gen 2) gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps – twice the speed of USB 5Gbps (also known as USB 3.2 Gen 1 or USB 3.0) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Note: This product is not compatible with 3.5 in. hard drives. For 3.5 in. drive support, please see our .

Applications

  • Mobile technicians who need a quick and easy way to access the data on 2.5” hard drives or solid-state drives
  • Access any 2.5″ hard drive or solid-state drive from your USB-C enabled computer, for data migration or drive cloning
  • Retrieve data from an old SATA drive

Key Features:

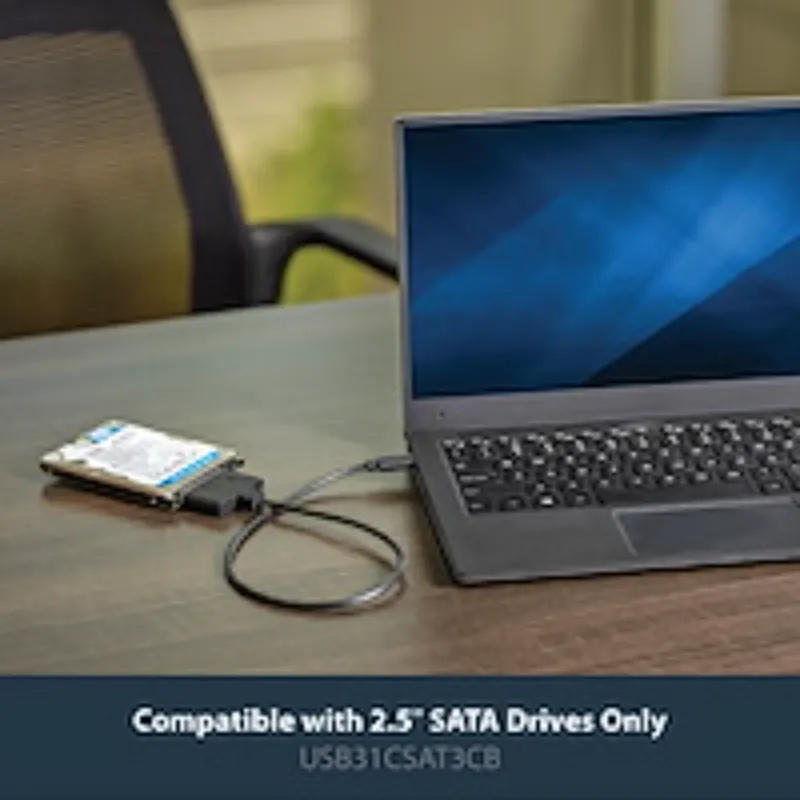

  • Quickly Access A 2.5″ SATA SSD Or HDD: Connect to a 2.5in SATA SSD (solid state drive) or HDD (hard disk drive) to add storage, perform backups, create disk images, recover data, and transfer content to your laptop; Not Compatible with 3.5in drives

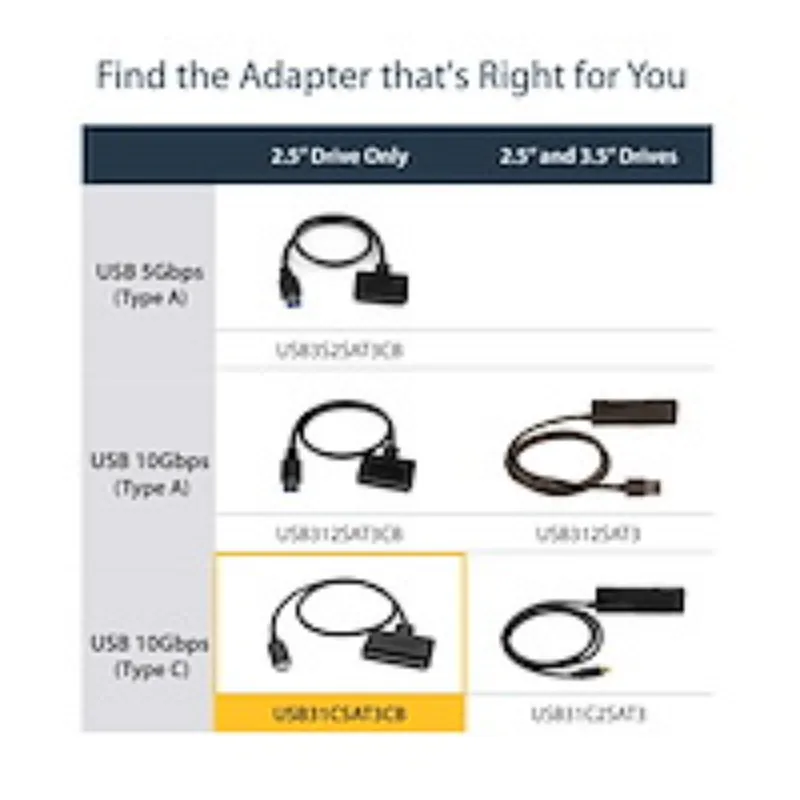

  • Compatibility: This bus-powered adapter is compatible with 2.5in drives; 3.5in drives require a dedicated power connection; For an adapter that supports 3.5in drives, please see our USB31C2SAT3
  • Fast Transfer Speeds: The SATA hard drive adapter cable lets users experience enhanced performance and super-fast data transfer speeds with support for USB 10Gbps and UASP
  • Connect From Anywhere: The hard drive USB C adapter cable is a portable solution that tucks away nicely in a laptop bag with no external power required

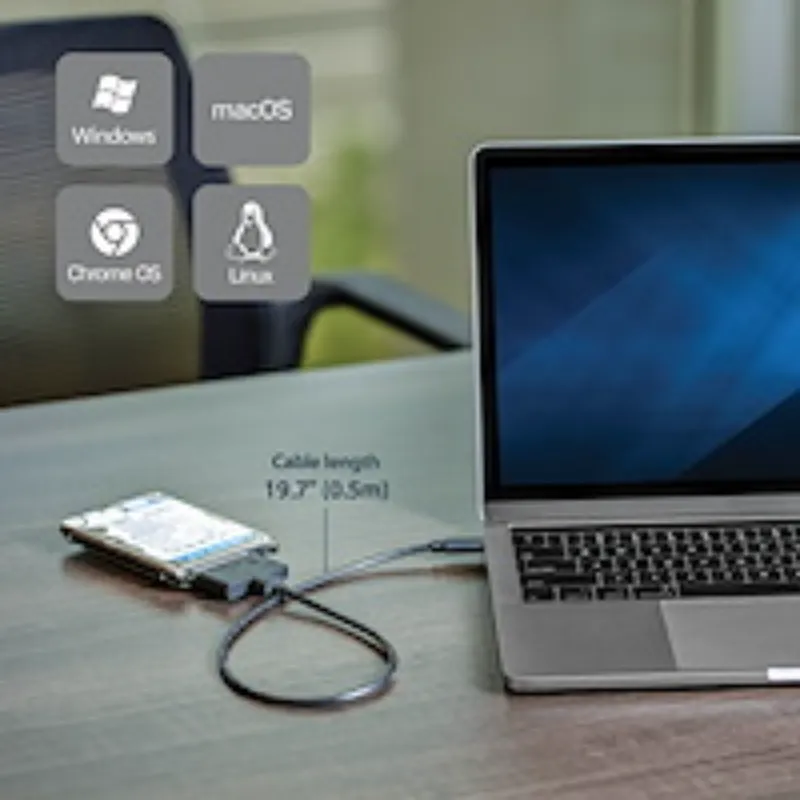

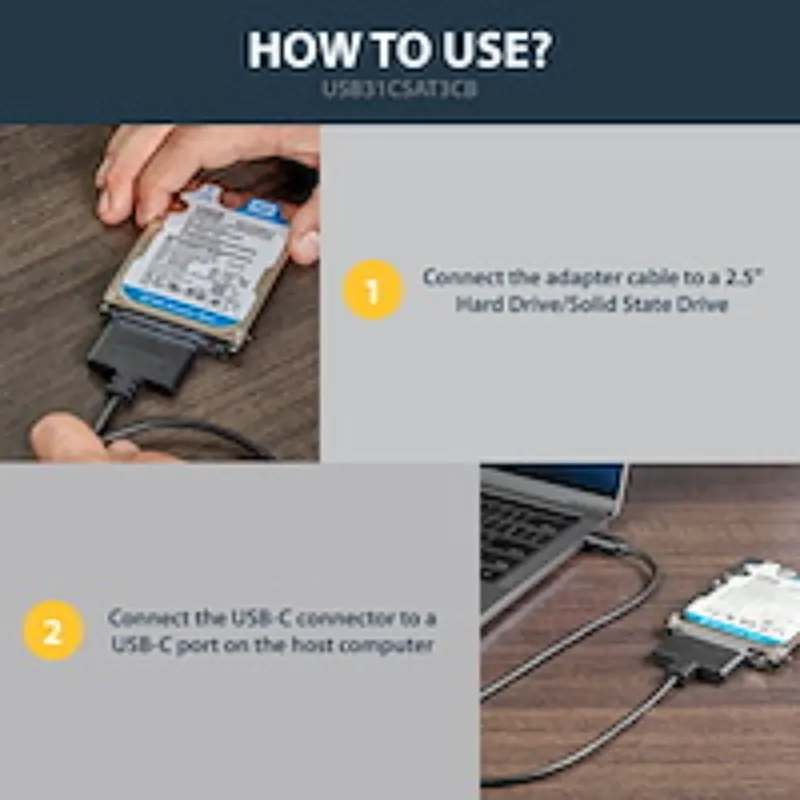

  • Save Time: The hard drive transfer cable lets you conveniently swap between drives with no need to install the drive inside an enclosure, just plug and play into a USB-C host system; No driver-install required; OS-Independent

Specifications:

WARRANTY INFORMATION

Warranty 2 Years

CONNECTOR(S)

Drive Connectors 1 × SATA Data & Power Combo (7+15 Pin)
Host Connectors 1 × USB 3.2 Type-C (24 Pin, Gen 1, 5Gbps)

ENVIRONMENTAL

Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -10°C to 55°C (14°F to 131°F)
Humidity 40% ~ 50% RH

HARDWARE

Interface USB 3.2 Gen 2
Bus Type USB 3.2 Gen 2
Number of Drives Supported 1
Drive Size 2.5″
Compatible Drive Types SATA
Number of 2.5″ Bays 1
Chipset ID ASMedia ASM235CM

PACKAGING INFORMATION

Shipping Weight 1.7 oz (48.0 g)
Package Quantity 1
Package Length 6.4 in (16.2 cm)
Package Width 7.9 in (20.0 cm)
Package Height 0.6 in (1.5 cm)

PERFORMANCE

Maximum Data Transfer Rate 10 Gbps
USB Type and Rate USB 10Gbps
UASP Support Yes
4Kn Support Yes
TRIM Support Yes
Hardware RAID Supported No
Maximum Drive Capacity Tested with Hard Drives up to 2TB at 7200 RPM
Hot Swap Capability Yes
MTBF 1,665,032 Hours

PHYSICAL CHARACTERISTICS

Product Weight 1.0 oz (29.2 g)
Color Black
Material Plastic
Product Length 20.0 in (50.8 cm)
Product Width 1.7 in (4.3 cm)
Product Height 0.2 in (5.0 mm)

SOFTWARE

OS Compatibility OS Independent; No Software or Drivers Required

SPECIAL NOTES / REQUIREMENTS

Note Windows 7 and Earlier Windows Versions Do Not Support TRIM with USB-to-SATA Devices

PACKAGE CONTENTS

Included in Package
  • 1 × USB 3.1 to SATA 2.5″ HDD Adapter Cable with USB-C
  • 1 × Quick Start Guide
Additional information
Brand
Cable TypeAdapter Cable, SATA to USB
InterfaceUSB 3.2 Gen 2
Warranty2 Years
