Name: TP-Link Outdoor Full-Color Wi-Fi Bullet Network Camera-VIGI C340-W(4mm) | Fast IT Solutions Australia
Brand: TP-Link
SKU: VIGI C340-W(4mm)
Price: 129.00 AUD
Availability: InStock

TP-Link Outdoor Full-Color Wi-Fi Bullet Network Camera-VIGI C340-W(4mm)

$129.00 'inc. GST'

TP-Link VIGI 4MP C340-W(4mm) Outdoor Full-Colour Wi-Fi Bullet Network Camera, 4mm Lens, Smart Detection, 3YW

In stock

Outdoor Full-Color Wi-Fi Bullet Network Camera

4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.

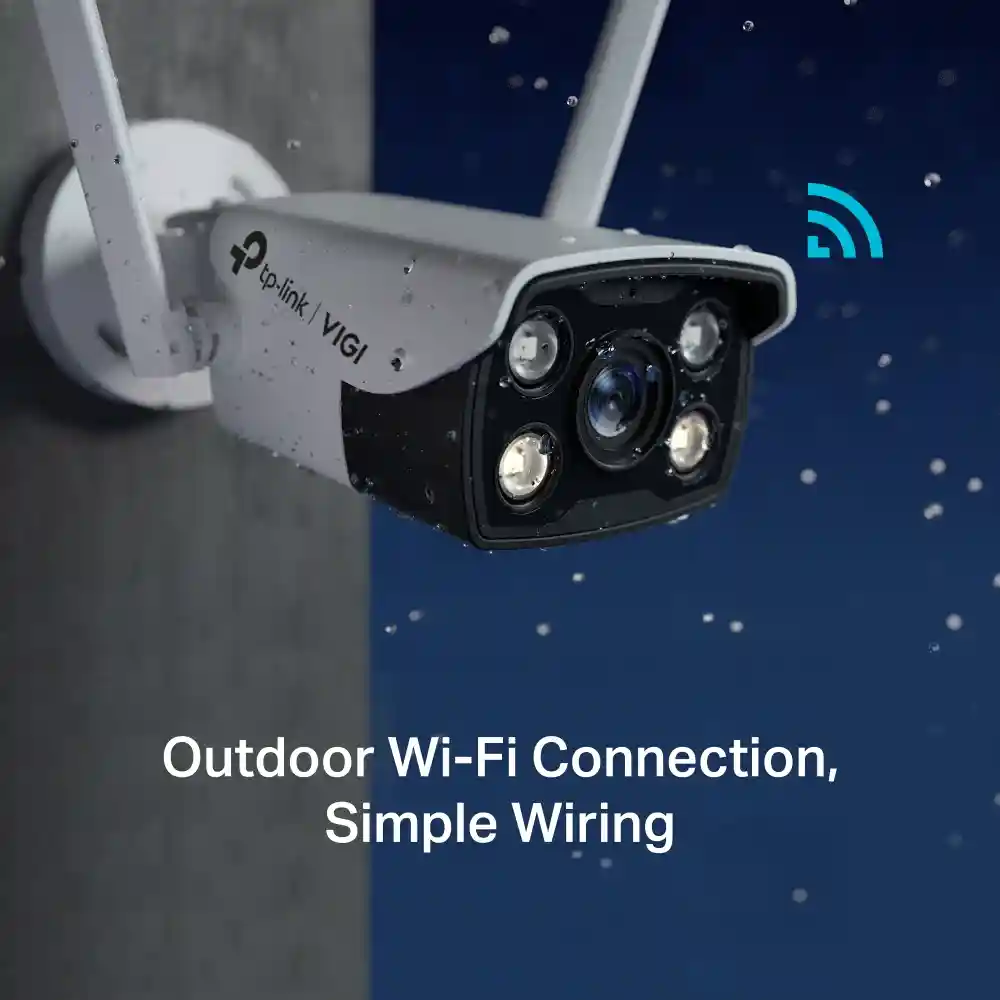

Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

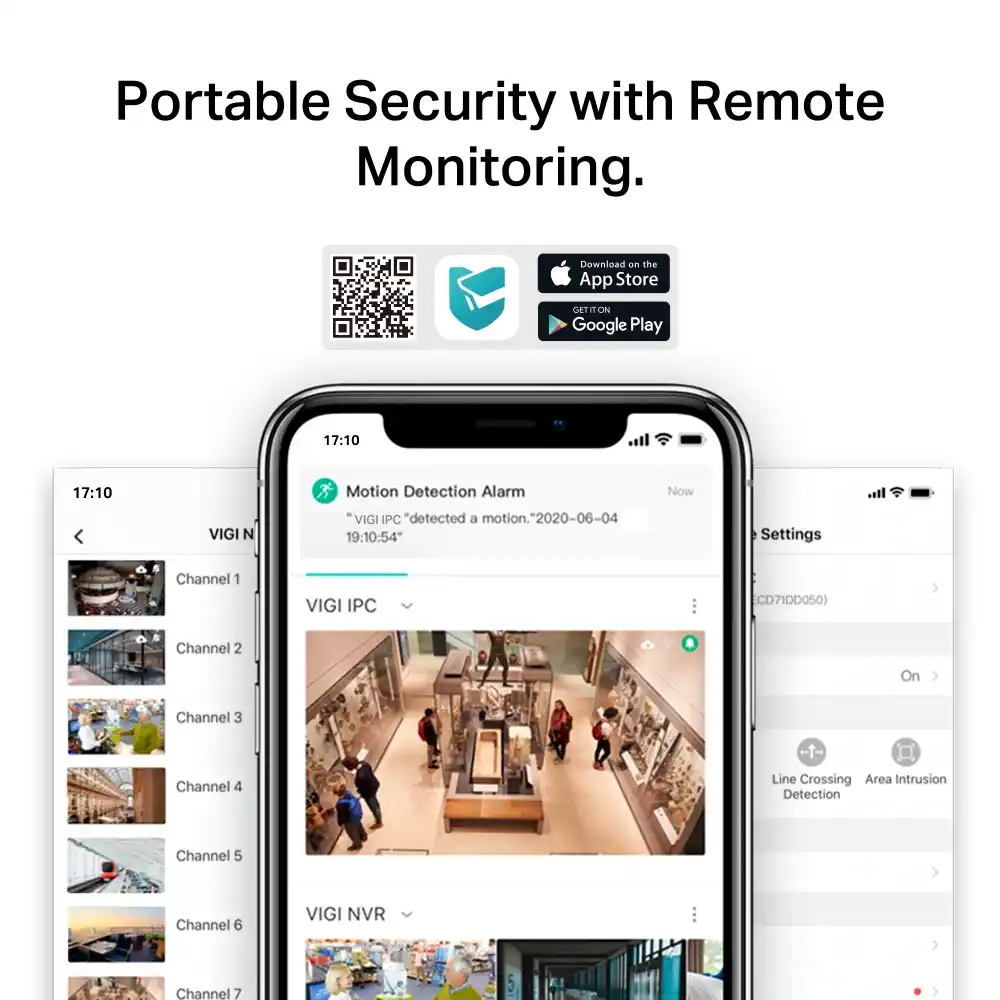

VIGI App: Manage your security from the palm of your hand with the VIGI app.

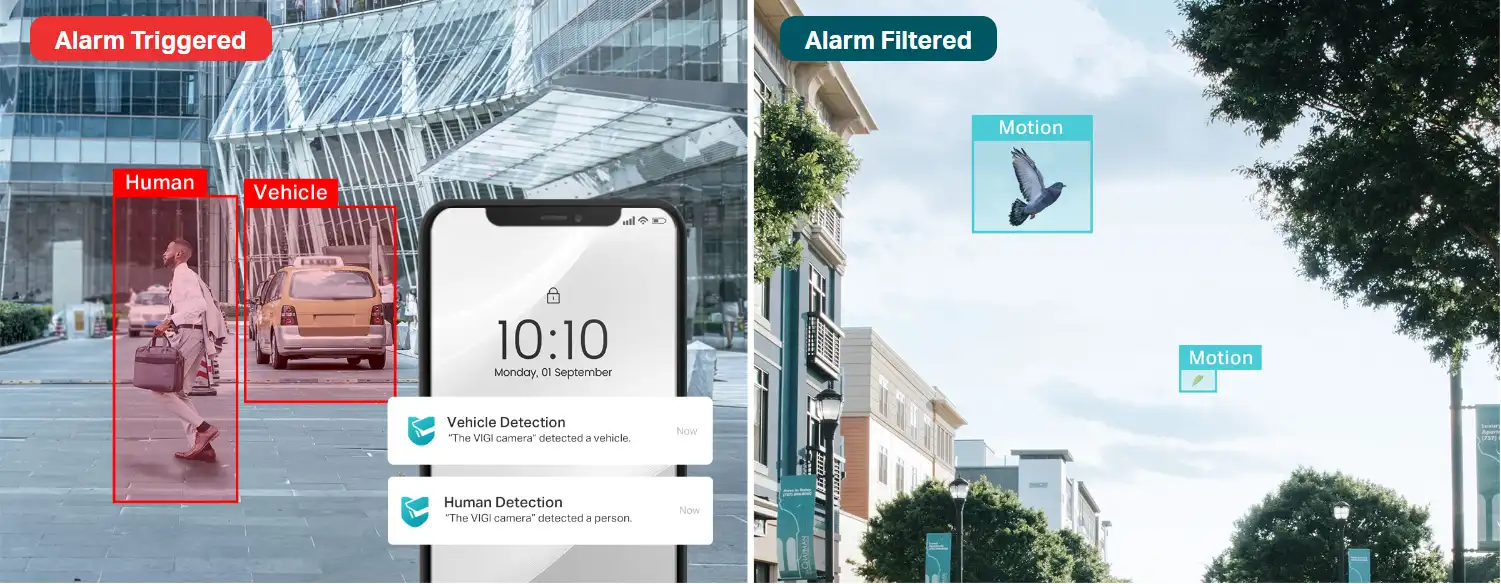

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

DWDR: Enhances video quality by improving dynamic range and detail presentation, making it perform excellently in diverse lighting conditions.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyses image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*

Specifications:

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal FOV: 76.3°, Vertical FOV: 40.6°, Diagonal FOV: 90.2°
Lens Mount	M12
DORI Distance	• Detect: 80 m (262 ft) • Observe: 33 m (109 ft) • Recognize: 16 m (52 ft) • Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	• Pan: 0° to 360° • Tilt: 0° to 90° • Rotation: 0° to 360°
ILLUMINATOR
IR LED	• Quantity: 2 • Range: 30m • Wavelength: 850nm
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2560 X 1440
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 704×576, 640×480, 352×288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 3 Mbps • Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness, Exposure, WDR, • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	• TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP, DNS, RTSP • NTP • UPnP • SSL/TLS • FTP/SFTP • RTP • IPv4 • IPv6 • ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
WIRELESS
Standards and Protocols	IEEE 802.11b/g/n
WiFi Channels	• UN: 1-13 • US: 1-11
Frequency	2.4 GHz
Wireless Transmit Power	High
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Throughput Monitoring	N/A
Radio Bandwidth	• Auto: N/A • 20M: Yes • 40M: Yes
Wireless Rate	• 11Mbps(802.11b) • 54Mbps(802.11g) • 150/300Mbps(802.11n)
Wireless Security	WPA-PSK/WPA2-PSK
Wireless Mode	AP, AP Client
ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Scene Change Detection • Abnormal Sound Detection • People Detection • Vehicle Detection • Loitering Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload Capture to FTP
Linkage Method	N/A
Output Notification	Message Push
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Power Adapter • Mounting Accessories
Material	Plastic
Net Weight	0.38 Kg
Gross Weight	0.66 Kg
Power Supply	9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug
Antenna	• Quantity: 2 • Type: 2.4GHz Welded Dipole Omni-Directional Antenna • Gain: 2.0dBi
Protection	IP66 Waterproof
Product Dimensions (L x W x H)	78.5 × 188.0 × 161.89 mm (3.09 × 7.40 × 3.67 in)
Certifications	CE NTRA JRF VCCI BSMI NCC

Weight

0.64 kg

Dimensions

25.8 × 15.2 × 11.2 cm

Brand

TP-Link

Surveillance Cameras Type

Outdoor Bullet Camera

Outdoor Full-Color Wi-Fi Bullet Network Camera-VIGI C340-W(4mm)

TP-Link Outdoor Full-Color Wi-Fi Bullet Network Camera-VIGI C340-W(4mm)

Click to enlarge

Compare

Vendor Code:

SKU: VIGI C340-W(4mm) Categories: IP Surveillance Cameras, Security and Surveillance, Surveillance Cameras Brand: TP-Link

Supplier ID: LEA-VIGI C340-W(4mm)

Description

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal FOV: 76.3°, Vertical FOV: 40.6°, Diagonal FOV: 90.2°
Lens Mount	M12
DORI Distance	• Detect: 80 m (262 ft) • Observe: 33 m (109 ft) • Recognize: 16 m (52 ft) • Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	• Pan: 0° to 360° • Tilt: 0° to 90° • Rotation: 0° to 360°
ILLUMINATOR
IR LED	• Quantity: 2 • Range: 30m • Wavelength: 850nm
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2560 X 1440
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 704×576, 640×480, 352×288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 3 Mbps • Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness, Exposure, WDR, • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	• TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP, DNS, RTSP • NTP • UPnP • SSL/TLS • FTP/SFTP • RTP • IPv4 • IPv6 • ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
WIRELESS
Standards and Protocols	IEEE 802.11b/g/n
WiFi Channels	• UN: 1-13 • US: 1-11
Frequency	2.4 GHz
Wireless Transmit Power	High
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Throughput Monitoring	N/A
Radio Bandwidth	• Auto: N/A • 20M: Yes • 40M: Yes
Wireless Rate	• 11Mbps(802.11b) • 54Mbps(802.11g) • 150/300Mbps(802.11n)
Wireless Security	WPA-PSK/WPA2-PSK
Wireless Mode	AP, AP Client
ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Scene Change Detection • Abnormal Sound Detection • People Detection • Vehicle Detection • Loitering Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload Capture to FTP
Linkage Method	N/A
Output Notification	Message Push
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Power Adapter • Mounting Accessories
Material	Plastic
Net Weight	0.38 Kg
Gross Weight	0.66 Kg
Power Supply	9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug
Antenna	• Quantity: 2 • Type: 2.4GHz Welded Dipole Omni-Directional Antenna • Gain: 2.0dBi
Protection	IP66 Waterproof
Product Dimensions (L x W x H)	78.5 × 188.0 × 161.89 mm (3.09 × 7.40 × 3.67 in)
Certifications	CE NTRA JRF VCCI BSMI NCC

Additional information

Weight	0.64 kg
Dimensions	25.8 × 15.2 × 11.2 cm
Brand	TP-Link
Surveillance Cameras Type	Outdoor Bullet Camera
