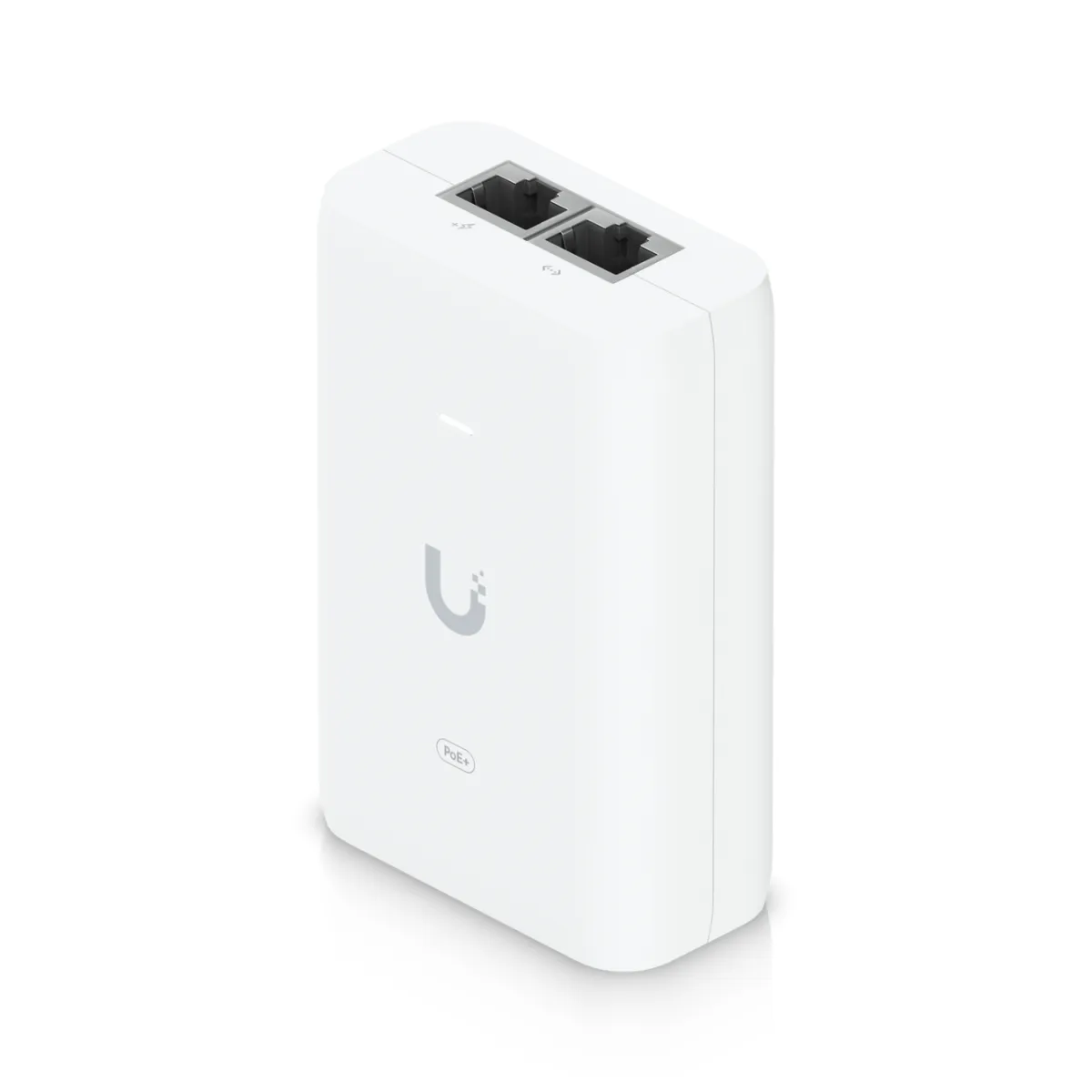

Ubiquiti PoE+30W Adapter -U-POE+
$39.20 'inc. GST'

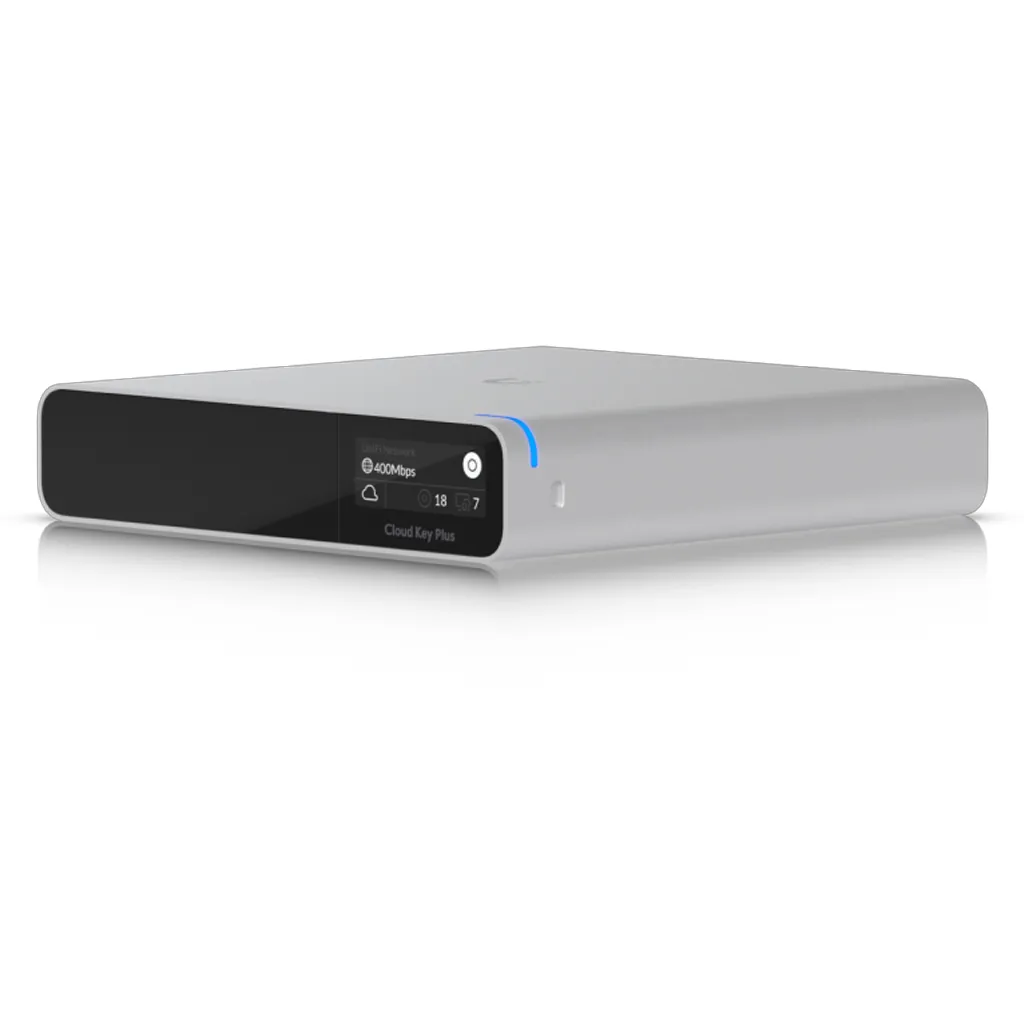

Ubiquiti 1TB SSD Cloud Key+ UniFi OS Console- UCK-G2-SSD
Original price was: $549.00.$542.69Current price is: $542.69. 'inc. GST'

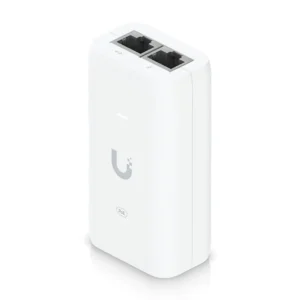

Ubiquiti 15W PoE Adapter- U-POE
$21.38 'inc. GST'
Ubiquiti PoE Adapter delivers up to 15 W of 802.3af PoE with Gigabit Ethernet and built‑in protection, ideal for powering UniFi access points and devices, 1year warranty.
In stock
Vendor Code:
Description

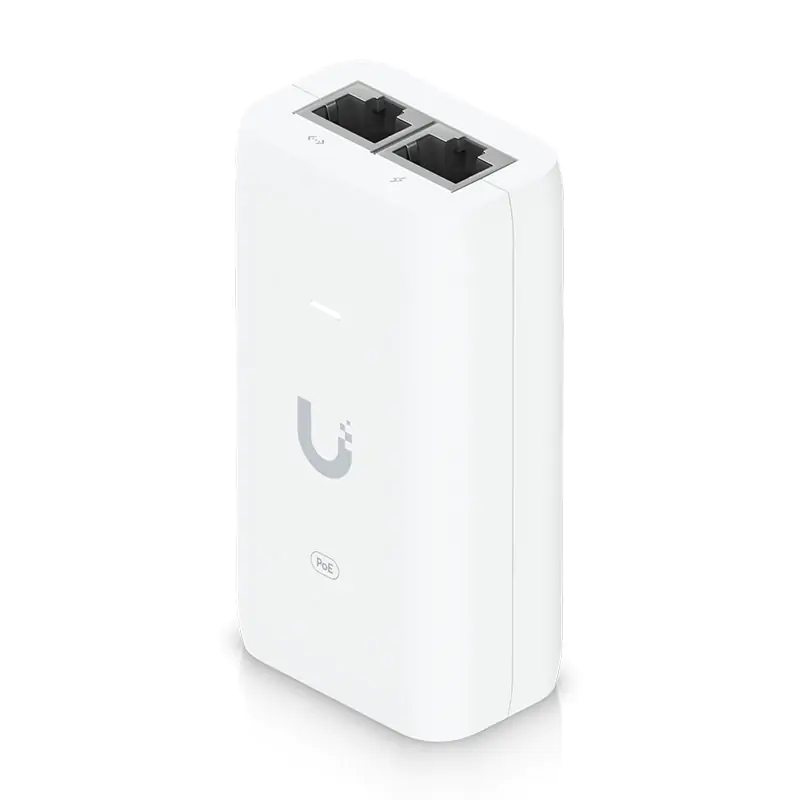

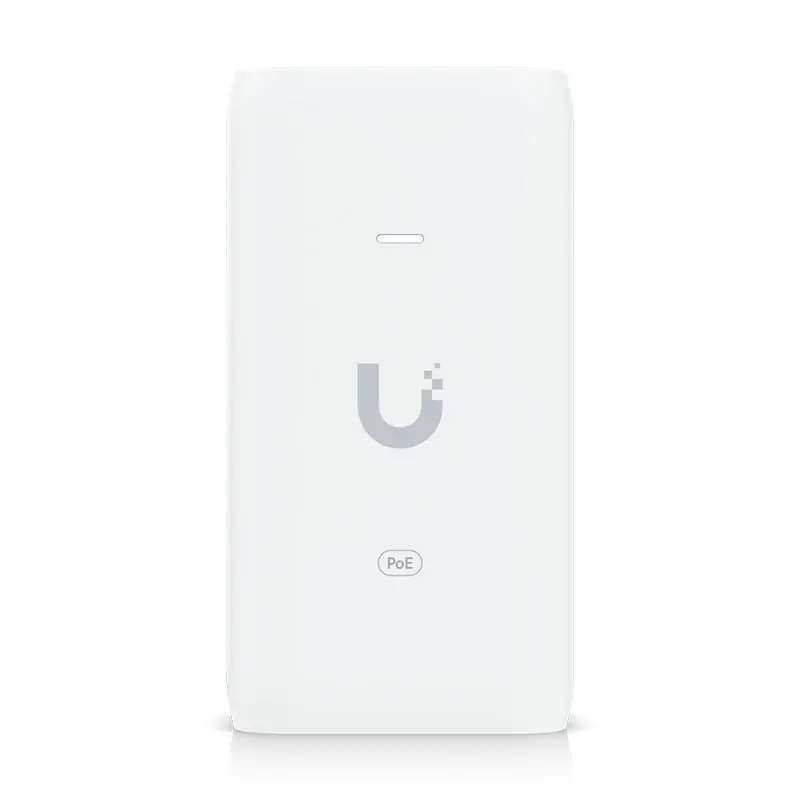

Ubiquiti 15W PoE 802.11AF Adapter- U-POE
The Ubiquiti PoE Adapter is a compact Power over Ethernet (PoE) injector designed to supply up to 15 W of 48 V DC power over a single Ethernet cable to compatible UniFi devices that use the 802.3af PoE standard. It features a Gigabit Ethernet RJ45 connection for high‑speed data transmission while delivering power, eliminating the need for a dedicated PoE switch or separate power source..
Key Features:
- Up to 15 W PoE Output
- Gigabit LAN Support
- Built‑In Protection
- LED Status Indicator
- Universal AC Input
Specifications:
| Dimensions | 86 x 46 x 33 mm (3.4 x 1.8 x 1.3″) |
| Weight | 100 g (3.5 oz) |
| Output voltage | 48V DC @ 0.32A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 500mA max. |
| Inrush current | <100A peak at 25°C |
| Efficiency | 84.25+% |
| Output ripple | 200mV p-p |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |
| AC connector | IEC-320 C6 |

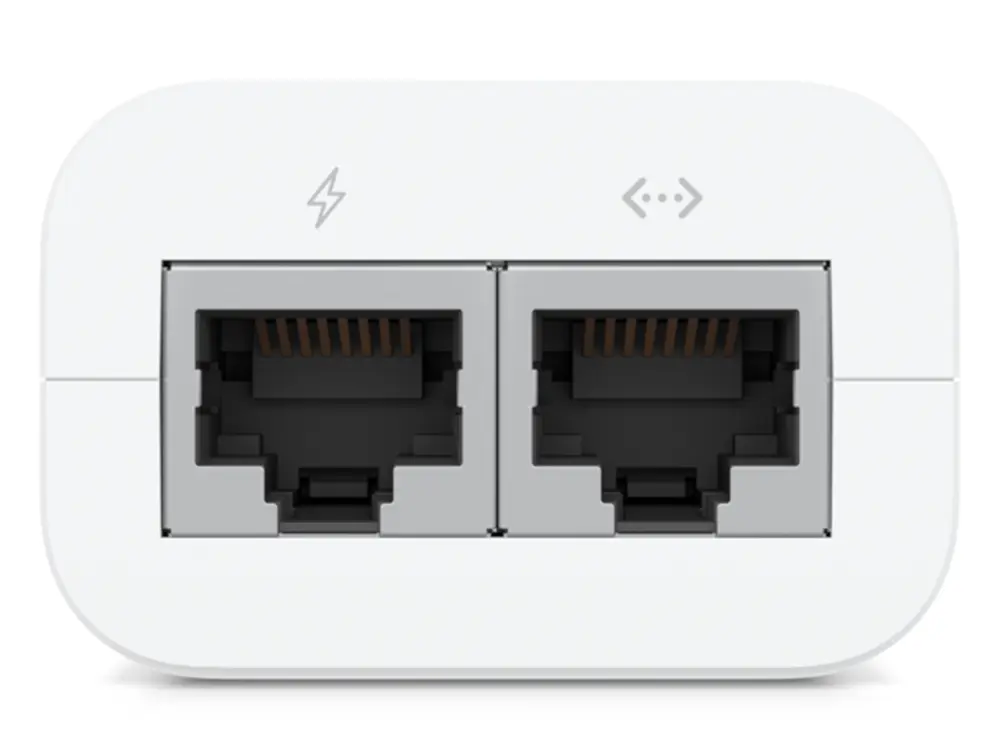

| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL |
Additional information
| Brand | Ubiquiti |
|---|---|
| Adaptor Type | PoE Adapter |
| Warranty | 1 Year |
