New
Ubiquiti PoE++60W Adapter-U-POE++
$69.00 'inc. GST'
Ubiquiti 15W PoE Adapter- U-POE
$21.38 'inc. GST'
Ubiquiti PoE+30W Adapter -U-POE+
$39.20 'inc. GST'
Ubiquiti adapter delivers up to 30 W of PoE+ power with Gigabit data and built‑in surge protection, ideal for powering UniFi access points and PoE+ devices, 1year warranty.
In stock
Vendor Code:
Description
Ubiquiti PoE+ Adapter 30W PoE+ Power

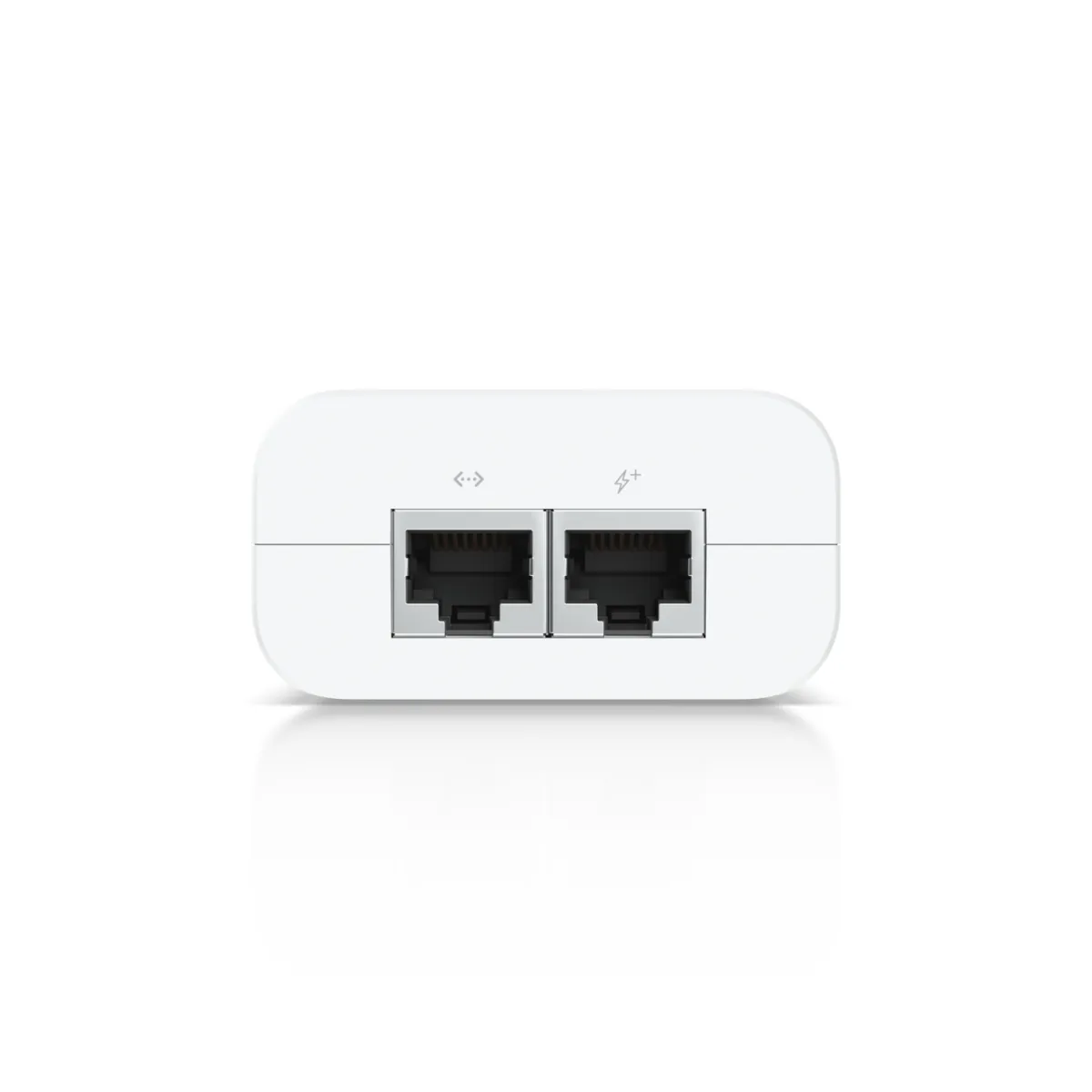

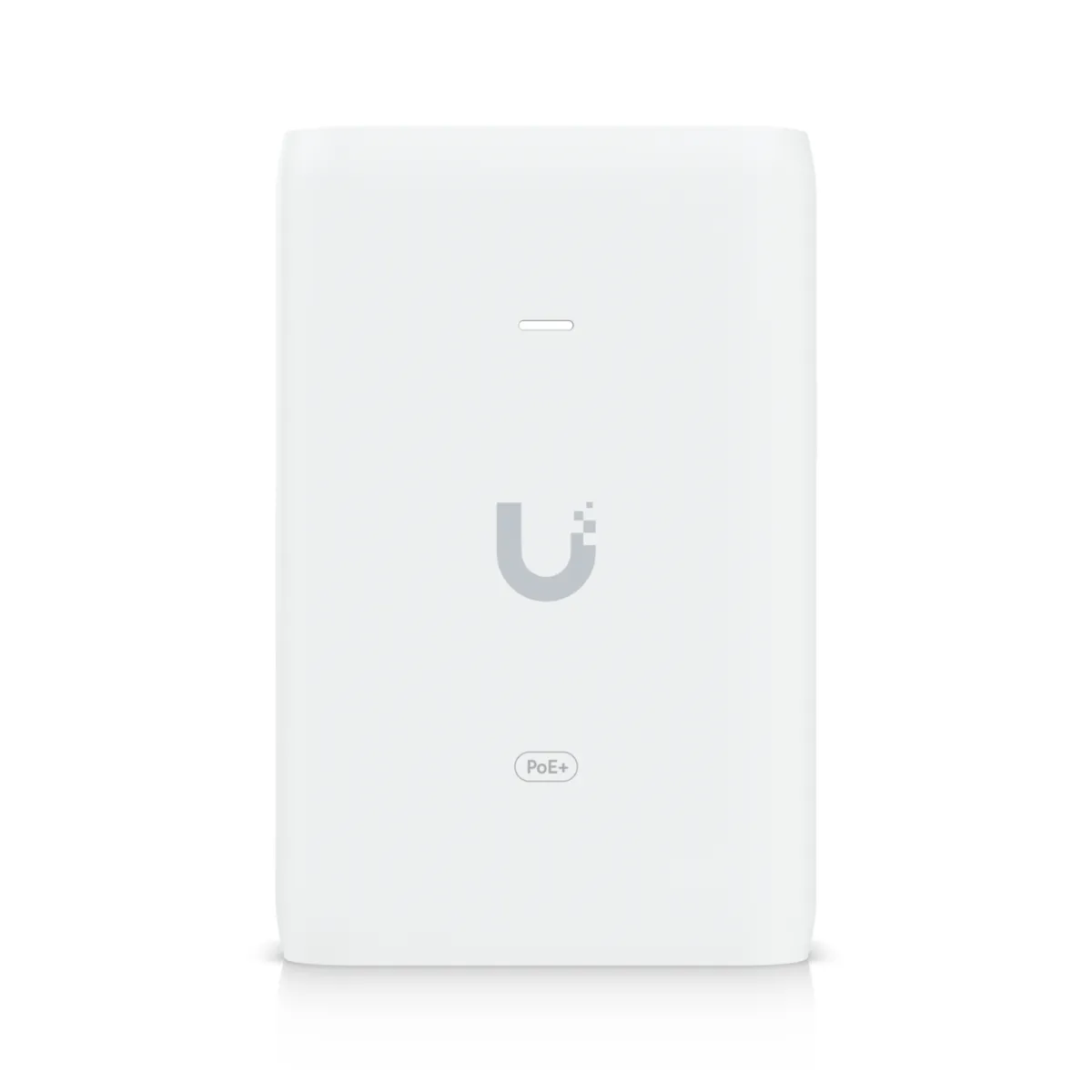

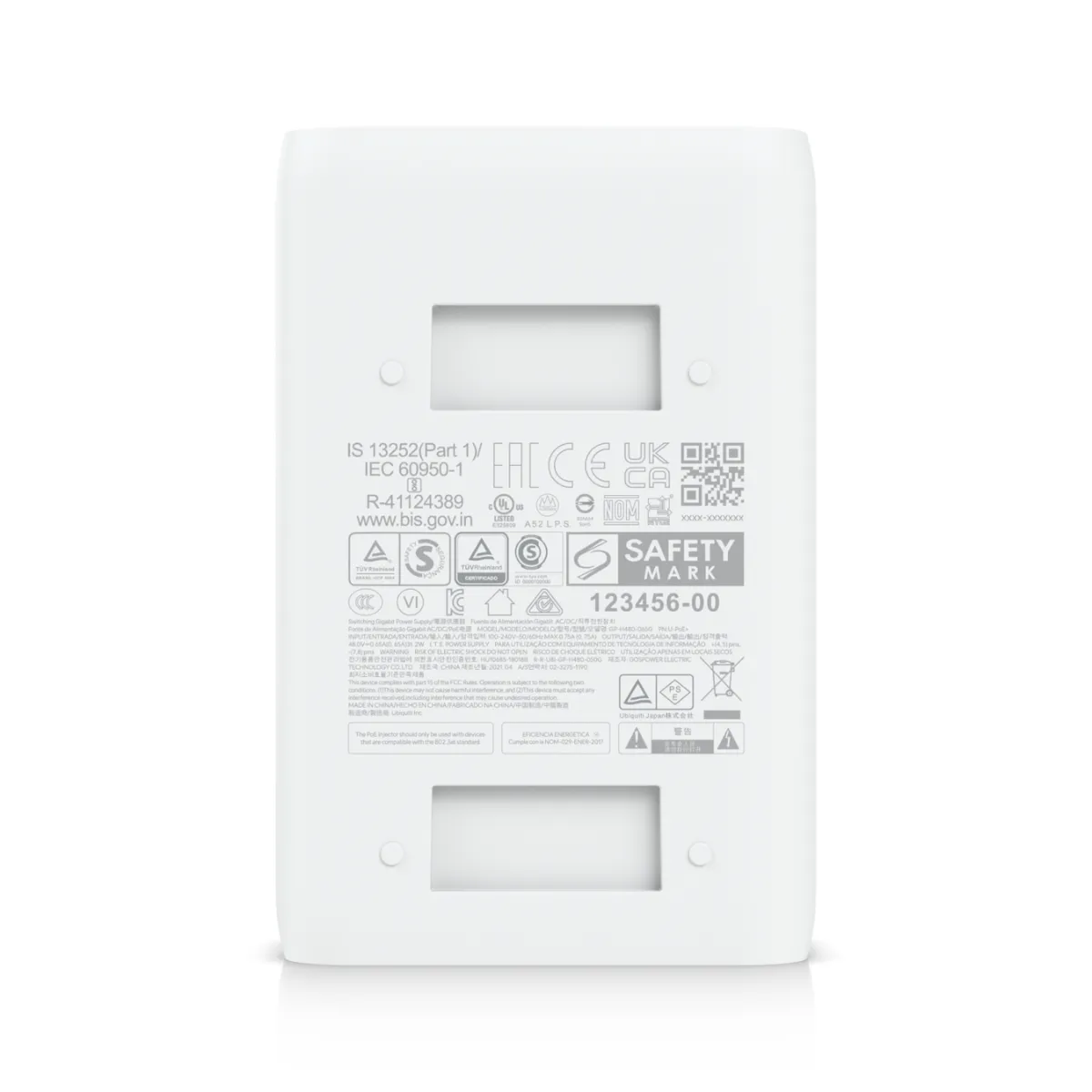

The Ubiquiti Networks PoE+ Adapter is a compact and reliable Power over Ethernet (PoE+) injector designed to power Ubiquiti devices that require standard 802.3at PoE+ power, such as UniFi access points, IP cameras, and other network hardware. By combining data and power over a single Ethernet cable, this adapter eliminates the need for separate power supplies or PoE‑capable switches, simplifying deployments in offices, homes, and enterprise installations.
Key Features:
- Delivers up to 30W of PoE+
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring
- NDAA Compliant
Specifications:
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4″) |
| Weight | 156 g (5.5 oz) |
| Output Voltage | 48V DC @ 0.65A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| LAN Activity Indicator | – |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | – |
| Reset Button | – |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 0.75A Max. |
| Inrush Current | <100A peak at 26°C |
| Efficiency | 87% |
| Switching Frequency | 70 kHz Max. |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL, CCC |
Additional information
| Brand | |
|---|---|
| Wired |
Power Over Ethernet (PoE) |
| Warranty |
1 Year |
