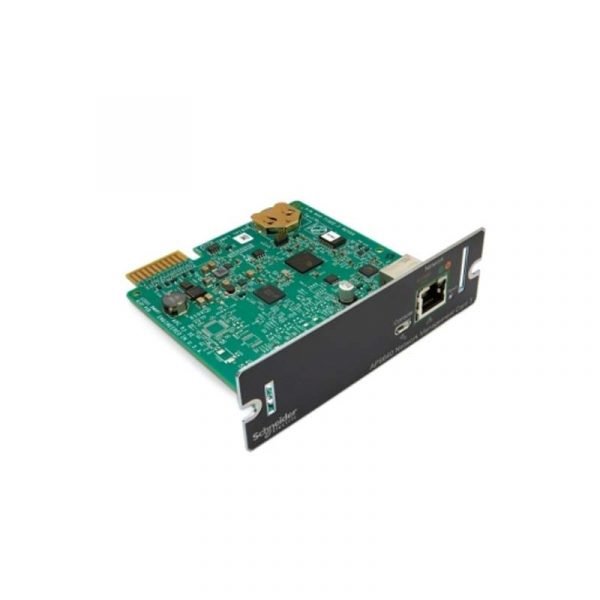

UPS Network Management Card With PowerChute Network Shutdown
$724.00 'inc. GST'
- Remote management adapter
- Plug-in module
- Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
- Data Transfer Rate 1 Gbps
- Network / Transport Protocol TCP/IP, SMTP
- Manufacturer Warranty 2-year
In stock
Description
UPS NETWORK MANAGEMENT CARD WITH POWERCHUTE NETWORK SHUTDOWN
UPS Network Management Card 3. Remote monitoring and control of an individual UPS by connecting it directly to the network.
- BACnet/IP Support for Smart-UPS: Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
- Command line interface: Offers simultaneous remote management access through Telnet and SSH
- Device Encryption: Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
- Gigabit Ethernet Support: Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
- IPv6 Support: Capable of operating on a network using IPv6 protocol
- Micro-USB based Console Support: For faster and easier Troubleshooting and Configuration.
- Modbus TCP Support: Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
- Multiple language support: Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
- Multiple user access: Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
- Root of Trust Support: Supports Secure Boot with Root of Trust for enhanced Security.
- Smart Battery Management Support: Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
- Standard UPS RFC 1628 MIB Compatible: Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
- UPS Firmware Update: User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).
UPS Network Management Cards Features & Benefits
- Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB
- Identify problematic trends before they escalate or export the data log for analysis.
- An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
- Pinpoint the timing and sequence of events leading up to an incident with the event log.
- Customize shut down and reboot of connected equipment and UPSs.
- Be notified of problems to ensure crucial situations are dealt with in a timely manner.
Specifications
Miscellaneous
Additional Information | Environmental
Operating Environment: 0 – 45 ?C Storage Temperature: -5 – 45 ?C Operating Relative Humidity: 0 – 95 % Storage Relative Humidity: 0 – 95 % Operating Elevation: 0-3000 meters Storage Elevation: 0-15000 meters |
Technical Information
Protocols | Telnet |
SSHv2 | |
HTTPS | |
SNMP v2c | |
SSHv1 | |
NTP | |
IPv6 | |
SSL | |
IPv4 | |
TCP/IP | |
HTTP | |
SNMPv3 | |
SNMP v1 | |
SMTP | |
Management | UPS Monitoring |
Network & Communication
Ethernet Technology | Gigabit Ethernet |
Interfaces/Ports
USB | Yes |
Network (RJ-45) | Yes |
Physical Characteristics
Weight (Approximate) | 80 g |
Height | 38 mm |
Width | 121 mm |
Depth | 114 mm |
General Information
Product Type | UPS Management Adapter |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Model | AP9640 |
Product Name | AP9640 UPS Management Adapter |
Brand Name | APC by Schneider Electric |
Additional information
Brand |
APC |
---|---|
UPS Accessories |
Network Card |
Warranty |
2 Years |
