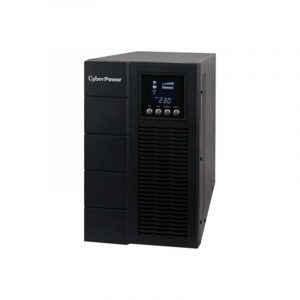

CyberPower Online OLS3000E Double Conversion Online UPS – 3 kVA/2.40 kW – Tower – 5 Minute Stand-by – 280 V AC Input – 240 V AC Output – 4 x IEC 60320 C13, 1 x IEC 60320 C19
The Online S Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility.
An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Specifications
Controls/Indicators
| Status Indicators | Power On
Line Mode Battery Mode Bypass Mode ECO Mode C/F Mode Fault Replace Battery |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
Miscellaneous
| Software Included | PowerPanel Business Edition |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
Battery Information
| Battery Chemistry | Lead Acid |
| Number of Batteries | 6 |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Maintenance-free, Sealed |
Physical Characteristics
| Weight (Approximate) | 28.20 kg |
| Form Factor | Tower |
| Height | 337 mm |
| Width | 196 mm |
| Depth | 416 mm |
Technical Information
| Dataline Protection | RJ-11 |
| RJ-45 | |
| Emergency Power OFF | Yes |
| Overload Protection | Yes |
| Protection Type | Surge |
| RFI | |
| EMI | |
| Short Circuit | |
| Lightning | |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Terminal Block | |
| IEC 60320 C19 | |
| Receptacle Detail | 4 x IEC 60320 C13 |
| 1 x IEC 60320 C19 |
Power Description
| Circuit Breaker | Yes |
| Input Voltage | 280 V AC |
| Output Voltage | 240 V AC |
| Load Capacity | 3 kVA/2.40 kW |
| Waveform Type | Pure Sine Wave |
Management
| Battery Management | Smart Battery Management(SBM) |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Replace Battery |
| Battery Mode | |
| UPS Fault | |
| Overload | |
| Low Battery |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | OLS3000E |
| Manufacturer Website Address | http://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OLS3000E |
| Product Name | Online S OLS3000E 3000VA Tower UPS |
| Product Line | Online |
| Product Series | S |
| Brand Name | CyberPower |
