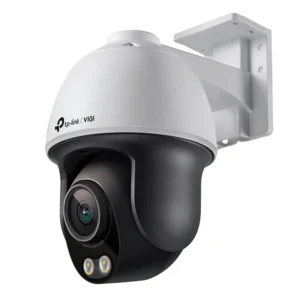

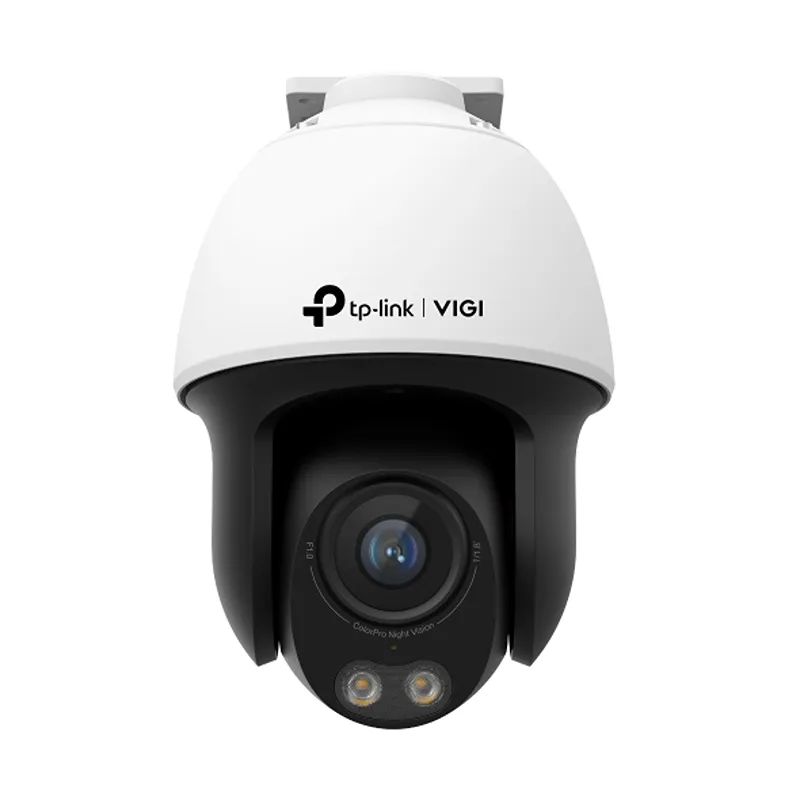

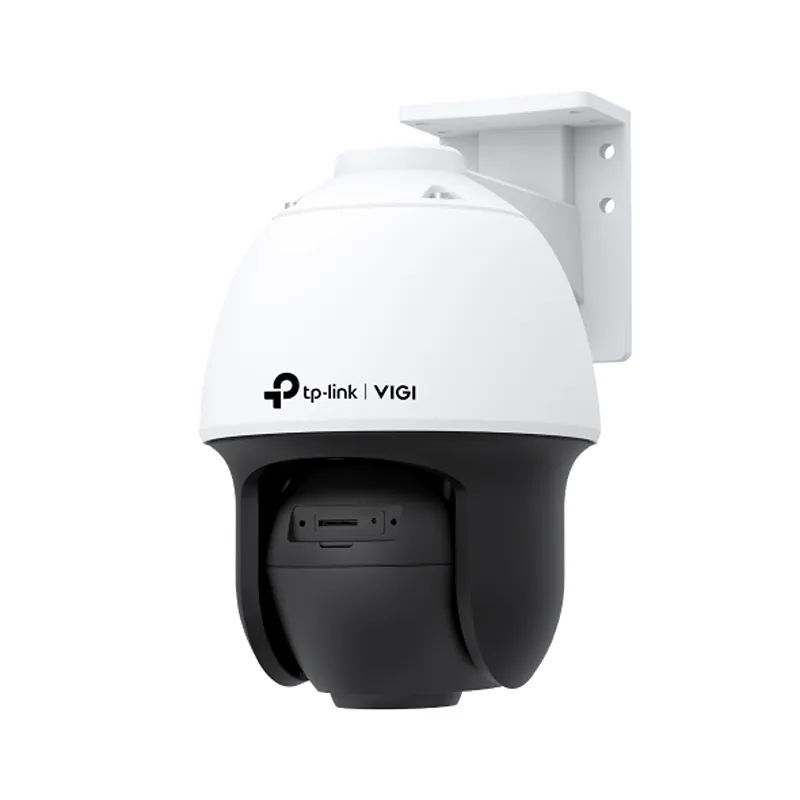

TP-Link VIGI 4MP Outdoor ColourPro Night Vision Pan Tilt Network Camera-VIGI C540S(4mm)

TP-Link VIGI C540S(4mm) VIGI 4MP Outdoor ColourPro Night Vision Pan Tilt Network Camera

Features

• Ultra-Low Light Colour Night Vision: Capture 24-hour 4MP high-quality and colourful video even in ultra low-light conditions without any supplemental lights.
• 360° Monitoring: Cover every corner and eliminate blind spots.
• Face Recognition: Efficiently enhances access management and attendance control while better protecting privacy.*
• People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.*
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• True WDR Technology§: Enable crystal-clear images in high contrast scenes.
• Active Defence: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• IP66 Waterproof: Reliable IP67 for stable outdoor performance.

Warranty Period: 3-Year

Specifications:

CAMERA

• Image Sensor :1/1.79″ Progressive Scan CMOS
• Shutter Speed :1/3 to 1/10000 s
• Slow Shutter :Yes
• Minimum Illumination :0.0005 Lux; 0 Lux with White Light
• Day/Night Mechanism :N/A
• Day/Night Switch :Unified/Scheduled/Auto

LENS

• Type :Fixed Focal Lens
• Focal Length :4 mm
• Aperture :F1.0±5%
• FOV :4mm:
  Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
• Lens Mount :M16*P 0.5
• DORI Distance :4 mm:
  Detect: 63 m (207 ft)
  Observe: 26 m (86 ft)
  Recognize: 13m (41 ft)
  Identify: 6 m (21 ft)

PTZ

• Pan/tilt Range :Pan: 0° to 348°, Tilt: 0° to 105°
• Pan/tilt Speed :Pan Speed:
  Configurable from 8° to 44°/s; Preset Speed: 44°/s
  Tilt Speed:
  Configurable from 8° to 44°/s, Preset Speed: 44°/s
• Manual Control Speed :Configurable from 8° to 35°/s
• Presets :300
• Patrol Scan :8 patrols, up to 8 presets for each patrol
• Power-off Memory :Yes;
  Auto restore to previous PTZ and lens status after power failure
• Park Action :Yes;
  Preset; Patrol Scan
• 3D Positioning :Yes

Angle Adjustment (Manual)

• Range :Pan: 0° to 348°
  Tilt: 0° to 105°

ILLUMINATOR

• IR LED :N/A
• White LED :Quantity: 2
  Range: 30m
• Illuminator On/Off Control :Auto/Scheduled/Always on/Always off

VIDEO

• Max. Resolution :2688 x 1520
• Main Stream :Frame Rate:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
• Sub-Stream :Frame Rate:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  704×576, 640×480, 352×288, 320×240
• Bit Rate Control :CBR, VBR
• Video Compression :Main Stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• H.264 Type :Main Profile/High Profile
• H.264+ :Main Stream Supported
• H.265 Type :Main Profile
• H.265+ :Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 6 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps


• Image Settings :Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
  White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement :BLC/3D DNR/HLC
• Wide Dynamic Range :120dB
  Note: When Face Recognition s is enabled, only DWDR is supported.
• SNR :? 52 dB
• Image Parameters Switch :Yes
• Privacy Mask :Up to 4 Masks
• ROI :1 Region
• OSD Setting :Yes

AUDIO

• Audio Communication :Two-Way Audio
• Audio Input :Yes
• Audio Output :Yes
• Audio Compression :Yes
• Audio Sampling Rate :8KHz
• Environment Noise Filtering :Yes
• Audio Bit Rate :64 Kbps(G.711 alaw)

NETWORK

• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF :Yes
• API :ONVIF
• Simultaneous Live View :3 Main Streams & 3 Sub-Streams
• Client :VIGI App, VIGI Security Manager, Web UI
• Web Browser :Google Chrome® 57 and above
  Firefox® 52 and above
  Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud :Yes
• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

• Smart Event :Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Abandoned Object Detection, Object Removal Detection, Loitering Detection, Scene Change Detection, Smart Frame
• Basic Event :Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage :Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method :N/A
• Output Notification :Message Push

Deep Learning Function

• People & Vehicle Analytics :Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
• Multi-Target-Type Detection :Supports Simultaneous Detection and Capture of Human Body and Vehicle
• Face Capture :Support
• Face Comparison :Support

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm :N/A
• Reset Button :Yes
• Power :DC Power Port
• On-board Storage:Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB^§
• Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
• Built-in Speaker: Yes
• Audio: N/A
