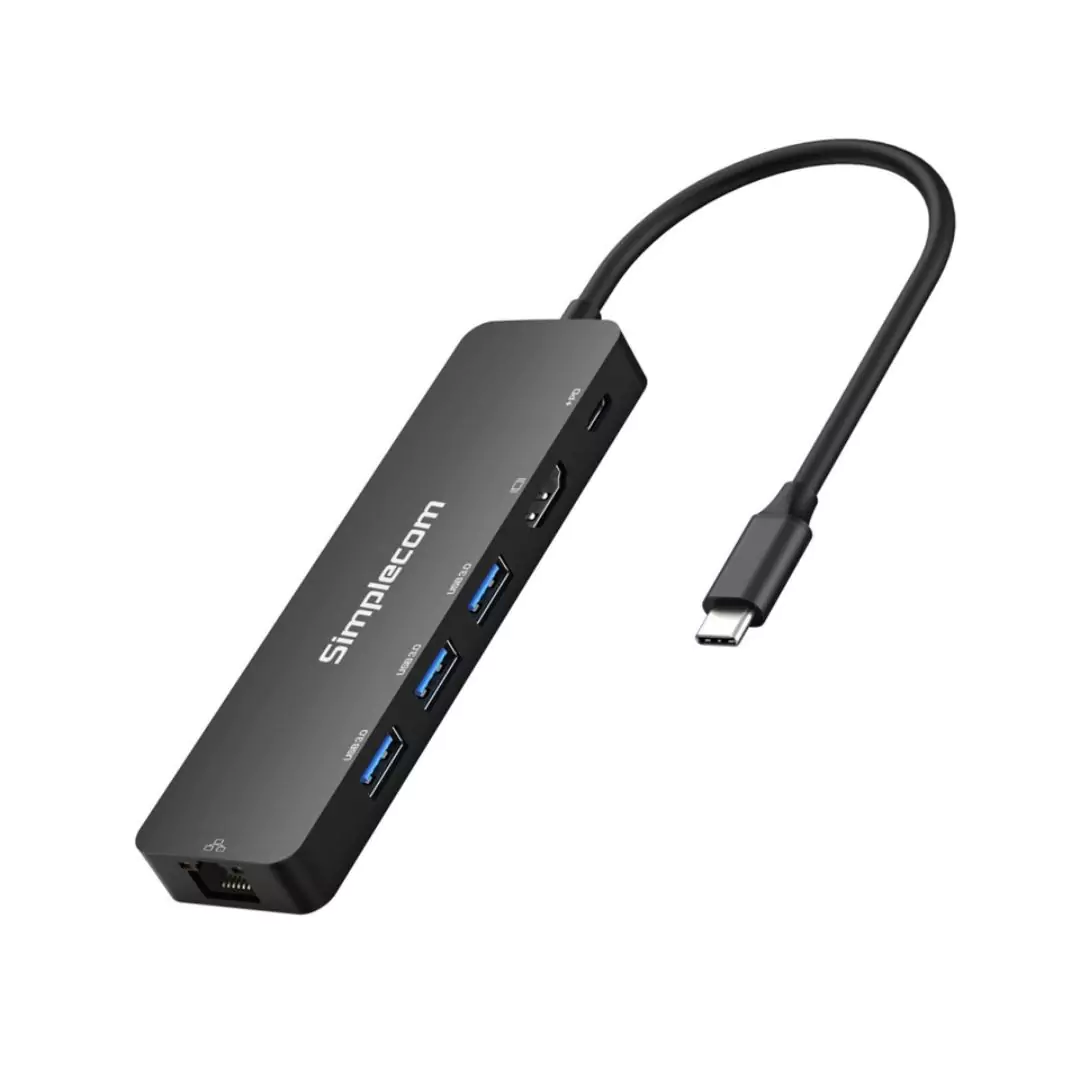

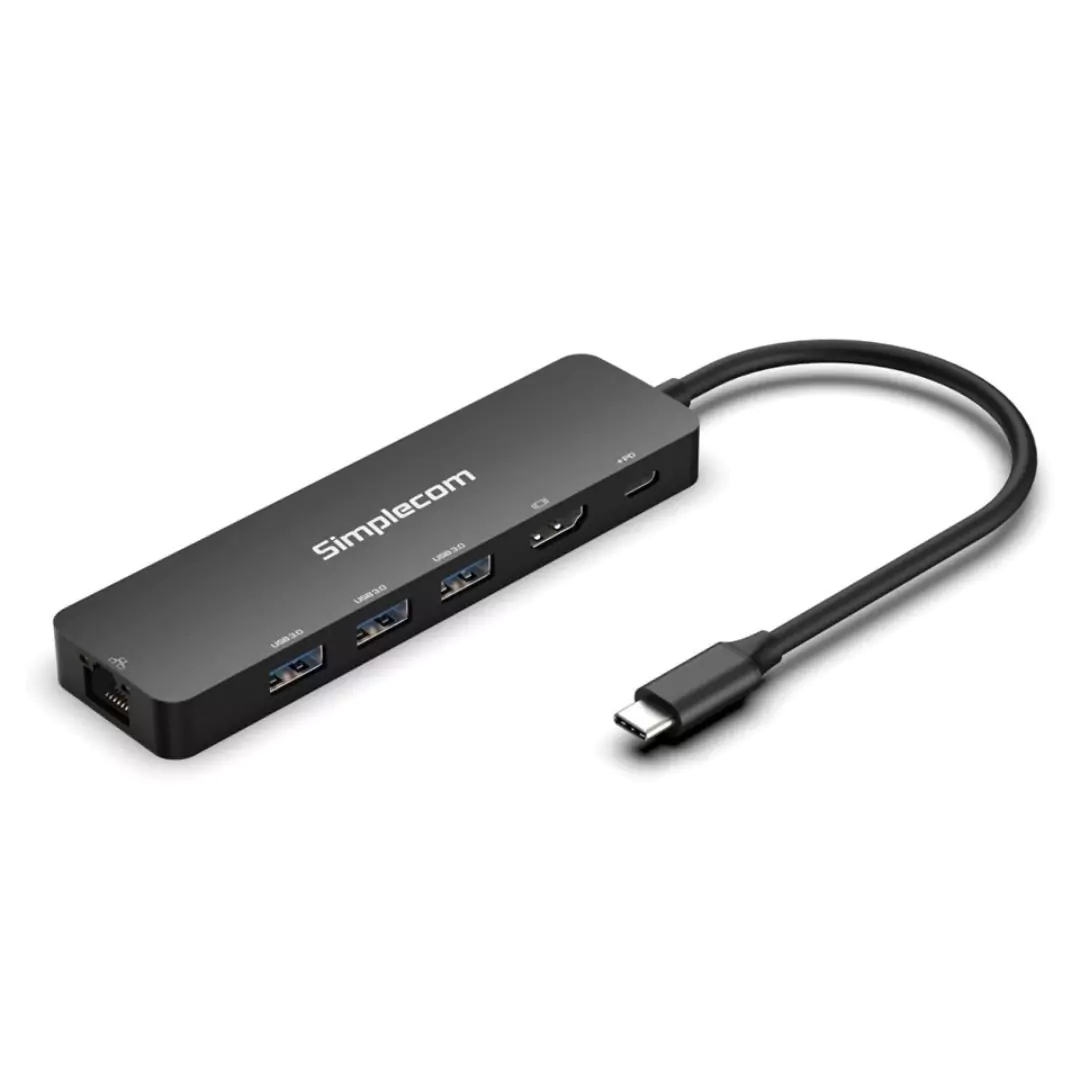

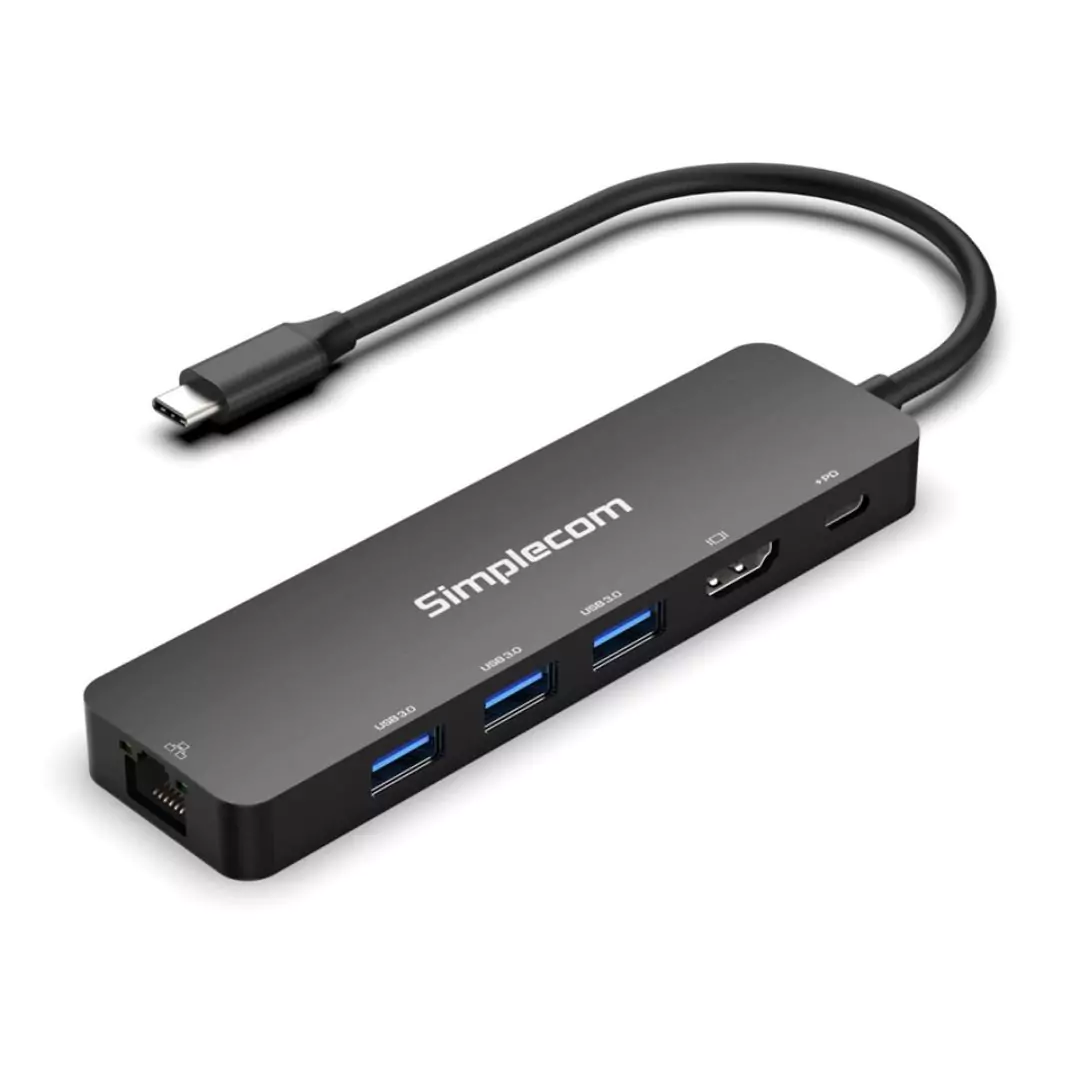

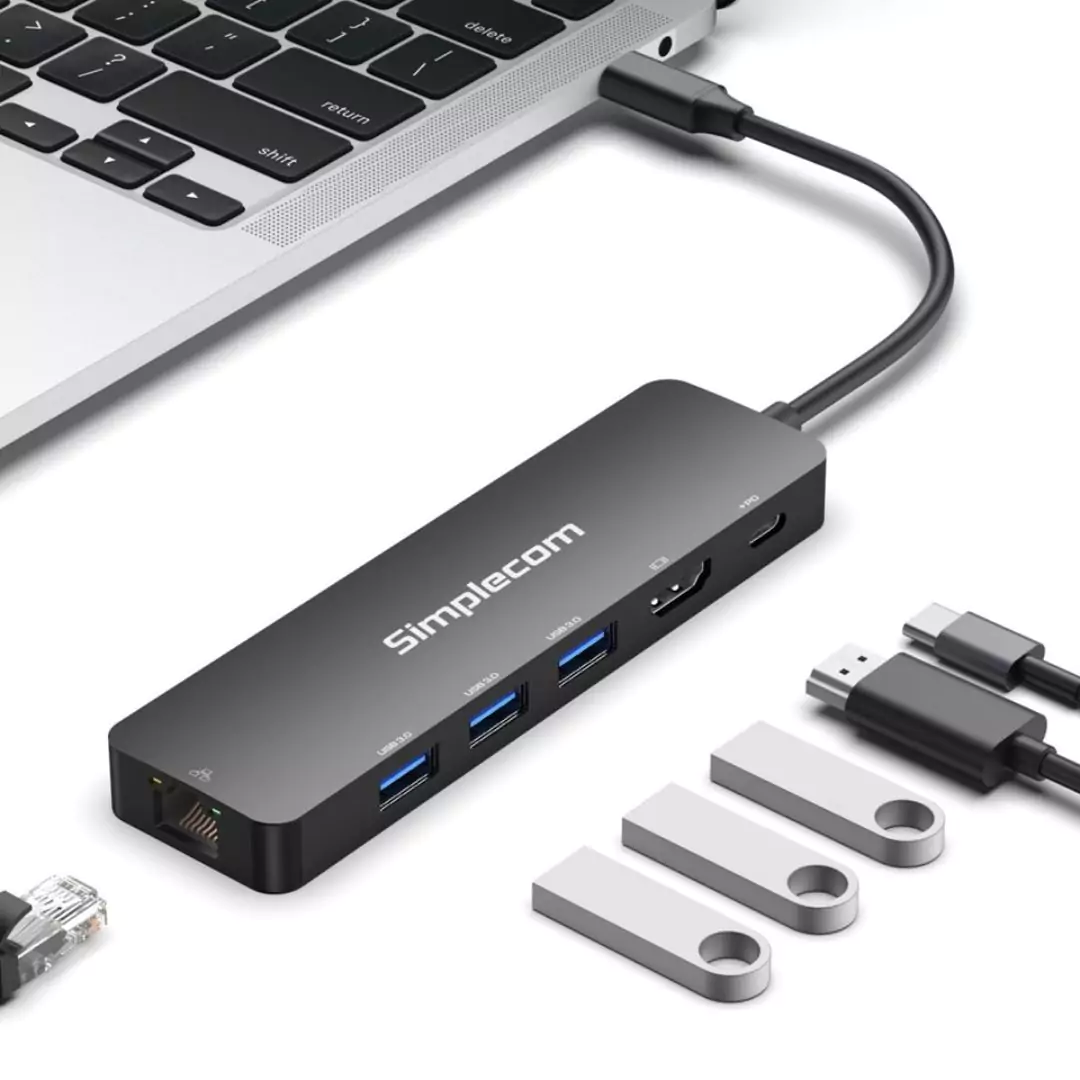

Simplecom CHT560 USB-C SuperSpeed 6-in-1 Multiport Docking Station HDMI 2.0

The Simplecom CHT560 transforms a single USB-C port on your laptop into six versatile connections. Three SuperSpeed USB-A ports, an HDMI 2.0 output capable of 4K@60Hz, a Gigabit Ethernet jack, and a 100W USB-C Power Delivery port all live in a sleek aluminium-alloy enclosure. With its built-in flexible USB-C cable, this docking station is ready to go wherever your work—and play—takes you.

Key Features

• 6-in-1 USB-C multiport docking station
• Three SuperSpeed USB-A ports (up to 5 Gbps each)
• HDMI 2.0 port supporting 4K@60Hz in Mirror or Extended mode
• Gigabit Ethernet port for up to 1 000 Mbps connectivity
• USB-C PD port delivering up to 100 W to charge your laptop
• Durable aluminium alloy housing for heat dissipation and style
• Built-in flexible USB-C cable; plug-and-play—no drivers required

Detailed Feature Breakdown

HDMI 2.0 Video Output

The HDMI 2.0 port delivers stunning 4K video at 60 Hz when your laptop’s USB-C supports DisplayPort Alt Mode. Enjoy fluid playback in both mirrored and extended display setups, perfect for presentations, video editing, or immersive movie nights.

SuperSpeed USB Hub

Three USB-A ports offer data transfer rates up to 5 Gbps. Connect external drives, peripherals, cameras, or flash drives without sacrificing speed. Each port maintains full bandwidth, so multitasking stays seamless.

100 W USB-C Power Delivery

Keep all ports active while charging your laptop at up to 100 W. The PD 3.0-compliant port ensures fast, safe power delivery, so you never have to choose between connectivity and battery life.

Gigabit Ethernet

Swap unreliable Wi-Fi for a wired connection up to 1 000 Mbps. Lower latency and reduced interference mean smoother video calls, faster file downloads, and rock-solid streaming in any environment.

Aluminium Alloy Design

A durable aluminium shell not only looks premium on your desk but also helps dissipate heat under heavy use. The lightweight, pocket-friendly form factor makes it a must-have travel companion.

Specifications

System Requirements

• Windows 10 or later, macOS 10.12 or later
• Available USB-C port with DisplayPort Alt Mode, Thunderbolt 3/4, or USB4
• Laptop GPU with DP 1.4 for full 4K@60Hz support (DP 1.2 supports 4K@30Hz)

Additional Tips & Insights

• For dual-monitor setups, consider a powered USB-C hub or Thunderbolt dock to chain multiple displays.
• Keep the dock’s cable straight and untangled for best signal integrity—avoid sharp bends.
• If you travel frequently, pair this dock with a compact travel pouch to protect it from scratches and dust.
• Many modern tablets and smartphones with DP Alt Mode can also leverage this docking station for desktop-style setups.

Important Note

Confirm that your device’s USB-C port supports DisplayPort Alternate Mode. Ports limited to charging or data transfer will not output video.
