APC by Schneider Electric Smart-UPS Line-interactive UPS – 2.20 kVA/1.98 kW – Tower – 3 Hour Recharge – 8.70 Minute Stand-by – 230 V AC Input – 220 V AC, 230 V AC, 240 V AC Output – 1 x IEC 60320 C19, 2 x IEC Jumper, 8 x IEC 60320 C13
$2,547.00 'inc. GST'
- Input Voltage AC 220/230/240 V
- Output Voltage AC 220/230/240 V 5%
- Power Capacity 1980 Watt / 2200 VA
- Input Connectors 1 x power IEC 60320 C20
- Output connectors 8 x power IEC 60320 C13 ? 2 x IEC jumper ? 1 x power IEC 60320 C19
- Battery Lead Acid Lead Acid
- Batteries Qty 1
- Run Time (Up To) 8.7 min at full load
- Networking RS-232, USB
In stock
Description
APC SMART-UPS(SMT) 2200VA, IEC(8), USB, SERIAL, SMART SLOT, LCD, TWR, SMART CONNECT-3Y WTY

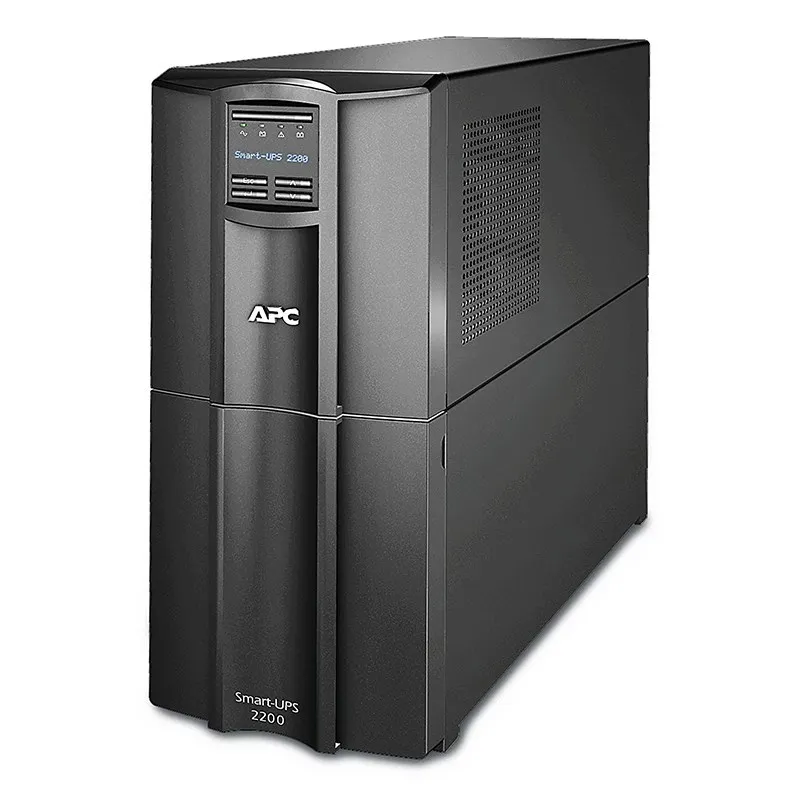

The APC SMT2200IC Smart-UPS SMT is a 2200VA 230V Line Interactive UPS with SmartConnect & Smart Slot. This product is an intelligent and efficient network power protection from entry-level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other.
Features
- SmartConnect: Innovative, easy-to-use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Audible alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Network manageable: Provides remote power management of the UPS over the network.
- Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
Battery Information
| Hot Swappable | Yes |
| Backup/Run Time (Full Load) | 8.70 Minute |
| Typical Battery Recharge Time | 3 Hour |
Physical Characteristics
| Weight (Approximate) | 48.80 kg |
| Form Factor | Tower |
| Height | 435 mm |
| Width | 197 mm |
| Depth | 544 mm |
Technical Information
| Application/Usage | POS Terminal |
| Router | |
| Switch | |
| Server | |
| Network Hub | |

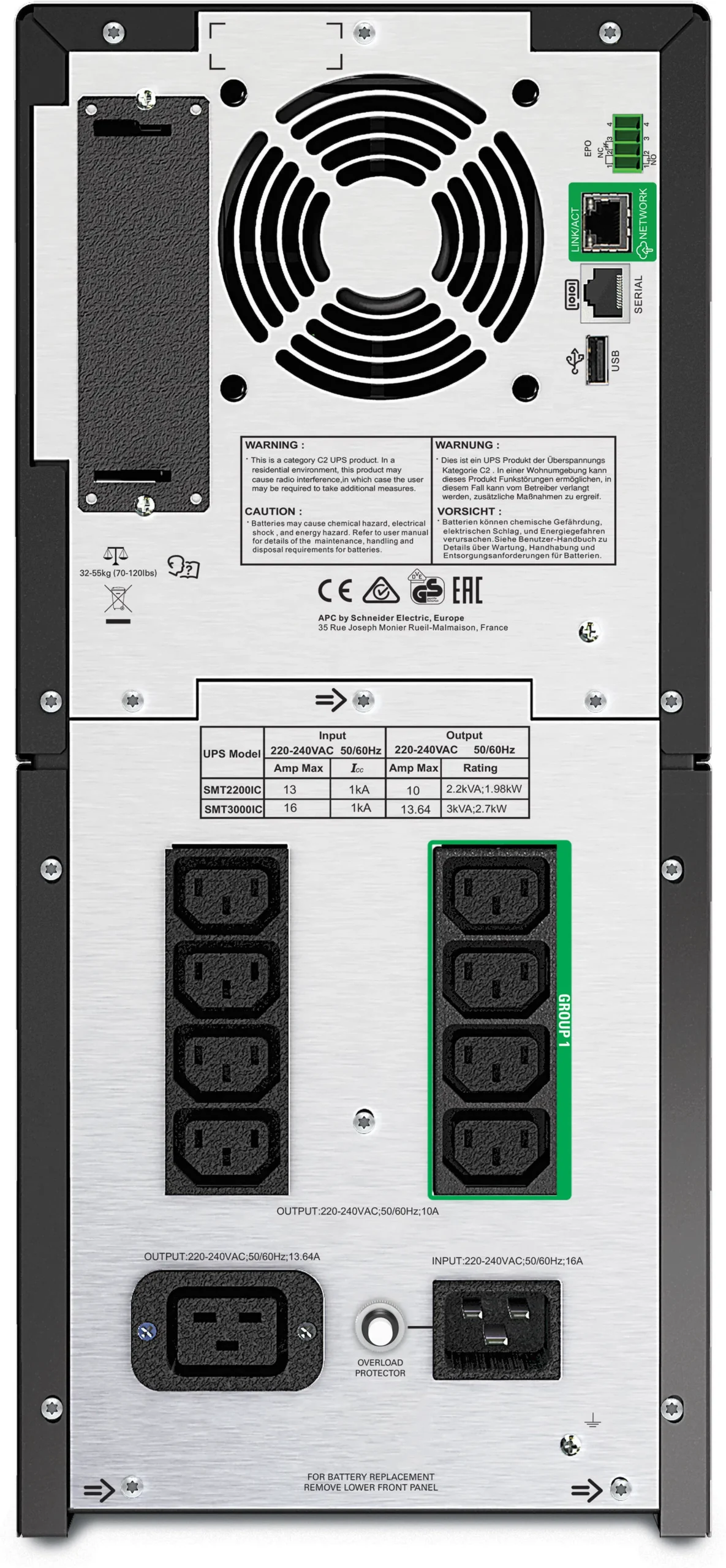

| Receptacle Type | IEC Jumper |
| IEC 60320 C13 | |
| IEC 60320 C19 | |
| Transfer Time | 10 ms |
| Receptacle Detail | 2 x IEC Jumper |
| 1 x IEC 60320 C19 | |
| 8 x IEC 60320 C13 |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 2.2kVA Tower UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 240 V AC | |
| 220 V AC | |
| Load Capacity | 2.20 kVA/1.98 kW |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC – 286 V AC |
Additional information
| Brand |
APC |
|---|---|
| Power Capacity |
1980 Watt / 2200 VA |
| Server and Workstation |
UPS |
| Warranty |
3 Years |
